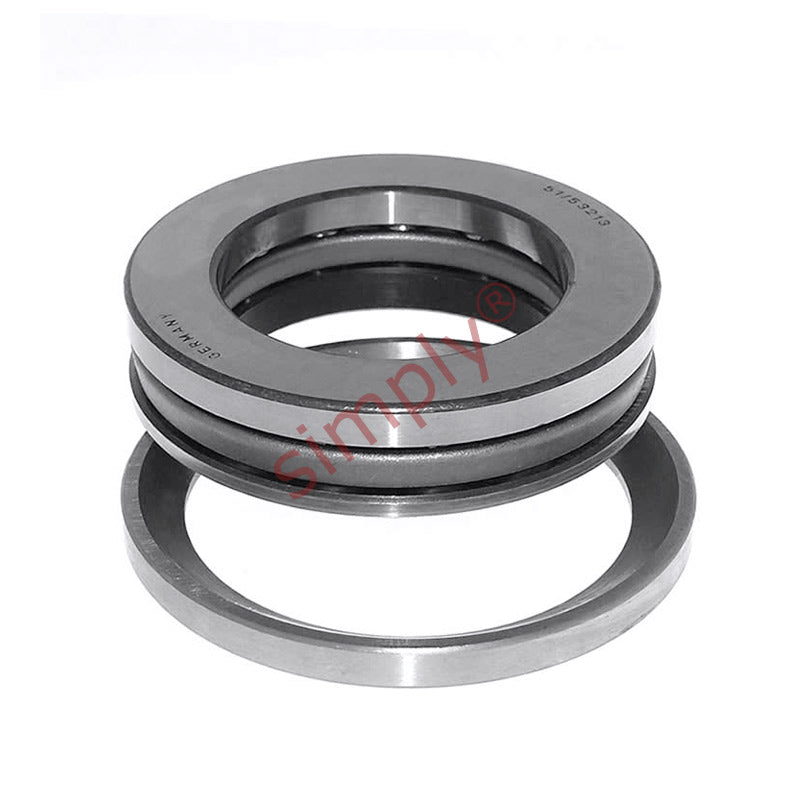

53226 Budget Single Thrust Ball Bearing with Spherical Housing Seat U226 130x190x53mm
53226 Budget Single Thrust Ball Bearing with Spherical Housing Seat U226 130x190x53mm
Regular price
€429,39
ex VAT
Regular price
Sale price
€429,39
ex VAT
In stock
Price Break
10+
€327,02
19+
€308,65
29+
€304,98
39+
€301,30
49+
€297,63
74+
€293,95
99+
€275,58
199+
€271,91
249+
€268,23
499+
€264,56
999+
€257,21
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 190mm
- Width:
- 53mm
Technical
Technical
| d | 130mm |
|---|---|
| D | 190mm |
| H1 | 53mm |
| Dynamic load C | 186 kN |
| Static load Co | 585 kN |
| Fatigue load limit Pu | 17 kN |
| Minimum load factor A | 1.8 |
| Reference speed | 1400 rpm |
| Limiting Speed | 2000 rpm |
| Weight | 4.85 kg |
| Seating Washer | U226 |
| d1 | 187mm |
| D1 | 133mm |
| D2 | 160mm |
| D3 | 195mm |
| H | 47.9mm |
| C | 17mm |
| R | 140mm |
| s | 67mm |
| r1r2 min | 1.5mm |
| da max | 166mm |
| Da max | 160mm |
| ra max | 1.5mm |
