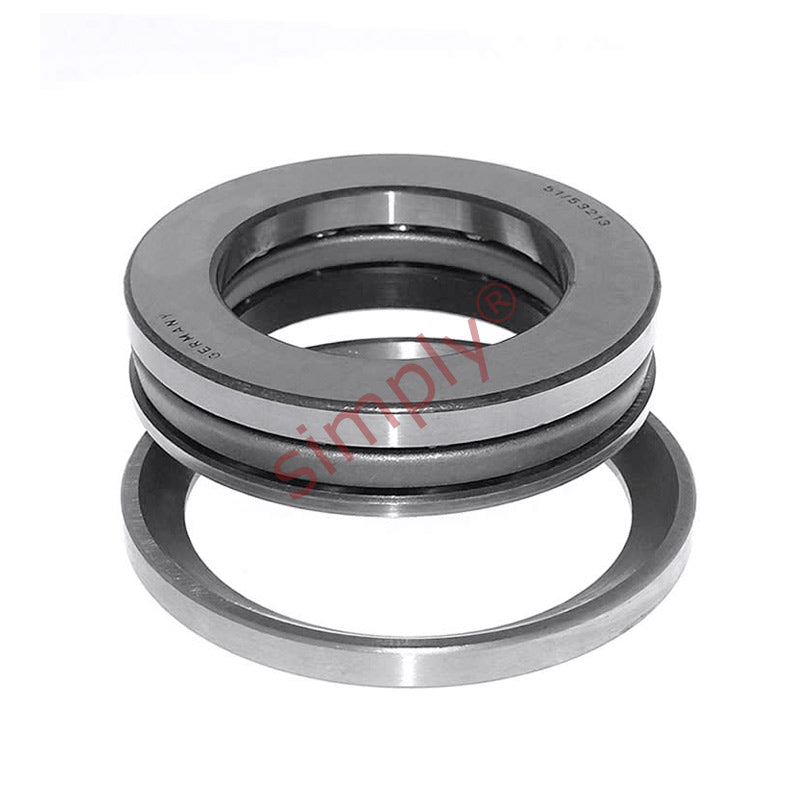

53314 Budget Single Thrust Ball Bearing with Spherical Housing Seat U314 70x125x48mm
53314 Budget Single Thrust Ball Bearing with Spherical Housing Seat U314 70x125x48mm
Regular price
€183,47
ex VAT
Regular price
Sale price
€183,47
ex VAT
In stock
Price Break
10+
€139,73
19+
€131,88
29+
€130,31
39+
€128,74
49+
€127,17
74+
€125,60
99+
€117,75
199+
€116,18
249+
€114,61
499+
€113,04
999+
€109,90
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Width:
- 48mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| H1 | 48mm |
| Dynamic load C | 135 kN |
| Static load Co | 320 kN |
| Fatigue load limit Pu | 11.8 kN |
| Minimum load factor A | 0.53 |
| Reference speed | 1900 rpm |
| Limiting Speed | 2600 rpm |
| Weight | 2.5 kg |
| Seating Washer | U314 |
| d1 | 125mm |
| D1 | 72mm |
| D2 | 98mm |
| D3 | 130mm |
| H | 44.2mm |
| C | 13mm |
| R | 100mm |
| s | 43mm |
| r1r2 min | 1.1mm |
| da max | 103mm |
| Da max | 98mm |
| ra max | 1mm |
