SKU: 53420M?SKF

SKF 53420M Single Thrust Ball Bearing with Spherical Housing Seat U420 100x210x98mm

Name: SKF 53420M Single Thrust Ball Bearing with Spherical Housing Seat U420 100x210x98mm
Brand: SKF
SKU: 53420M?SKF
Price: 5051.69 EUR
Availability: InStock

€5.051,69 ex VAT

Sale Sold out

In stock

Price Break

10+ €3.847,37

19+ €3.631,22

29+ €3.587,99

39+ €3.544,76

49+ €3.501,53

74+ €3.458,31

99+ €3.242,16

199+ €3.198,93

249+ €3.155,70

499+ €3.112,48

999+ €3.026,02

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

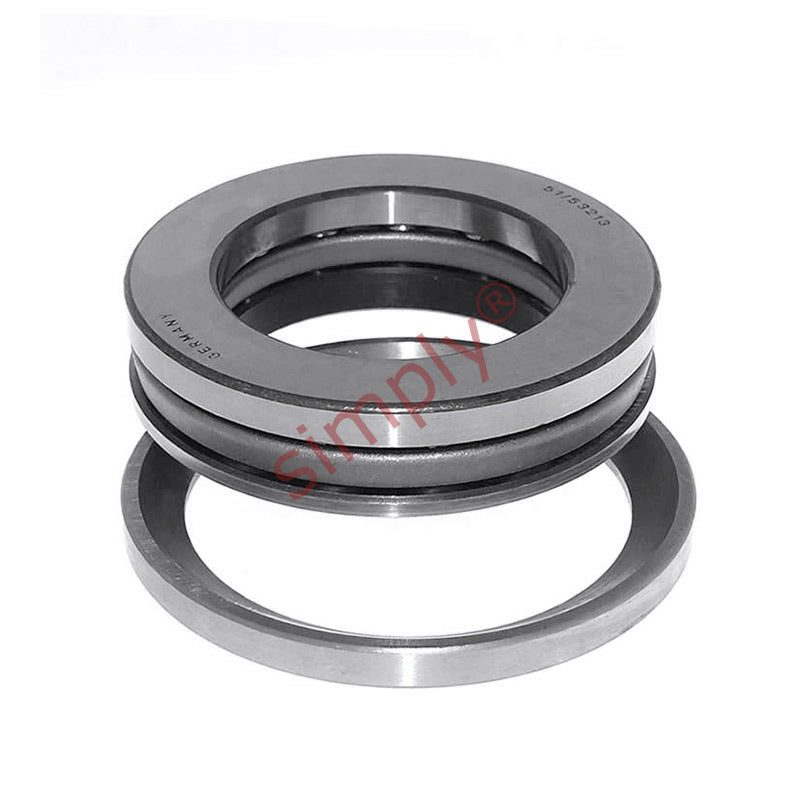

SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 210mm
Width:: 98mm

Technical

d	100mm
D	210mm
H1	98mm
Dynamic load C	371 kN
Static load Co	1060 kN
Fatigue load limit Pu	31.5 kN
Minimum load factor A	5.8
Reference speed	950 rpm
Limiting speed	1400 rpm
Weight	18 kg
Seating washer	U420
d1	205mm
D1	103mm
D2	155mm
D3	220mm
H	90mm
C	27mm
R	160mm
s	50mm
r1r2 min	3mm
da max	165mm
Da max	155mm
ra max	2.5mm
