• SKF 566/563/Q Imperial Taper Roller Bearing 2.75x5x1.4375 inches
1 1

SKU: 566/563/Q-SKF

SKF 566/563/Q Imperial Taper Roller Bearing 2.75x5x1.4375 inches

SKF 566/563/Q Imperial Taper Roller Bearing 2.75x5x1.4375 inches
€148,95 ex VAT
€148,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €113,44
19+ €107,07
29+ €105,79
39+ €104,52
49+ €103,25
74+ €101,97
99+ €95,60
199+ €94,32
249+ €93,05
499+ €91,77
999+ €89,22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

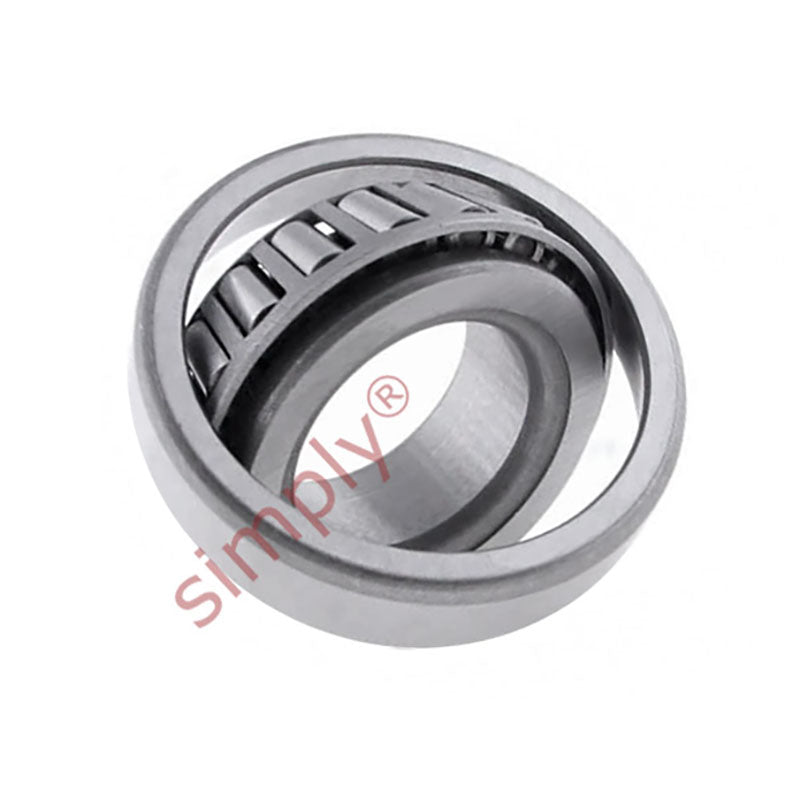

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Outside Diameter:
127mm = 5 inch
Width:
36.51mm = 1.437 (1-7/16) inch
Seals / Shields:
None
Technical
d 69.85mm
D 127mm
T 36.512mm
Dynamic load 176 kN
Static load 255 kN
Fatigue load limit Pu 30.5 kN
Reference speed 3800 rpm
Limiting speed 5600 rpm
Weight 1.9 kg
d1 97.6mm
B 36.17mm
C 28.575mm
r1r2 min 3.5mm
r3r4 min 3.3mm
a 28mm
da max 83mm
db min 82mm
Da min 109mm
Da max 114mm
Db min 119mm
Ca min 5mm
Cb min 7.5mm
ra max 3mm
rb max 3mm
Calculation factor e 0.37
Calculation factor Y 1.6
Calculation factor Y0 0.9
