SKU: 570-402

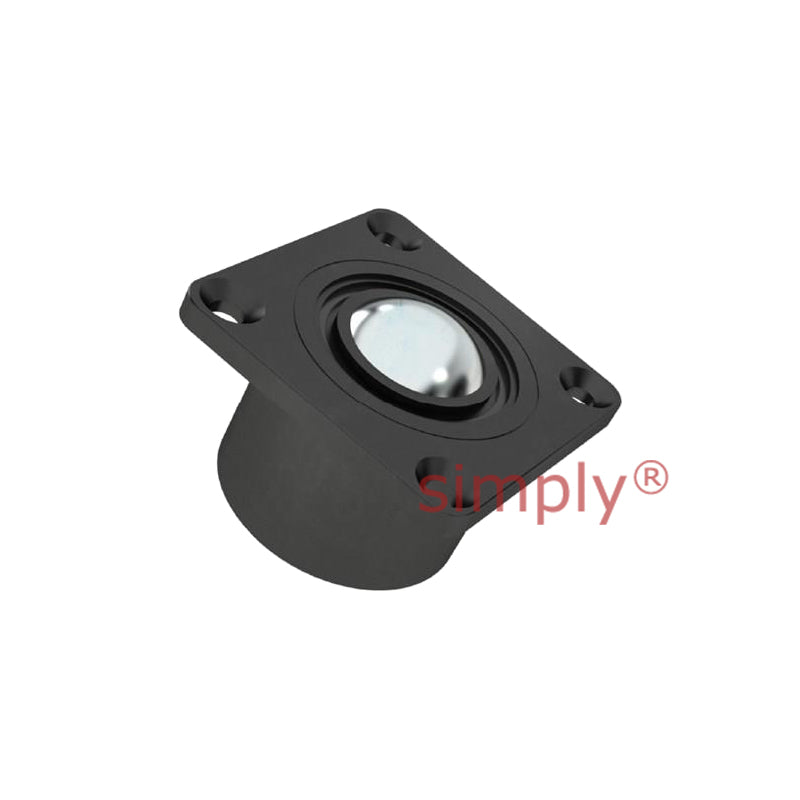

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 182kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 182kg - Allow 2-3 Days
Regular price
€85,46
ex VAT
Regular price
Sale price
€85,46
ex VAT
In stock
Price Break
10+
€76,06
19+
€71,79
29+
€70,93
39+
€70,08
49+
€69,22
74+
€68,37
99+
€64,10
199+
€63,24
249+
€62,39
499+
€61,53
999+
€59,82
Couldn't load pickup availability
Description
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 25.4mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 25.4mm |
| Y mm | 41.3mm |
| W mm | 35.8mm |
| D mm | 44.5mm |
| FXF mm | 57.2mm |
| CXC mm | 44.5mm |
| T mm | 4.8mm |
| E(Dia) mm | 4x5.6mm |
| --- | Loads and Speeds |
| Load Capacity | 182 kg |
| Load capacity Ibs | 401 lbs |
| Weight | 0.45 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
| Mounting Type | Square |
