SKU: 6001-2Z/C5VA201-SKF

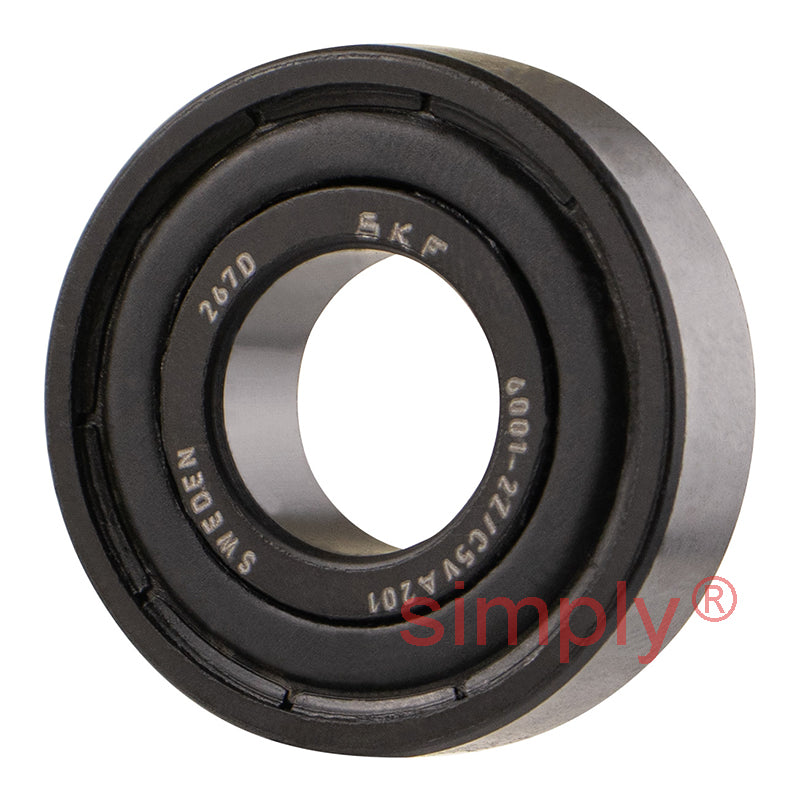

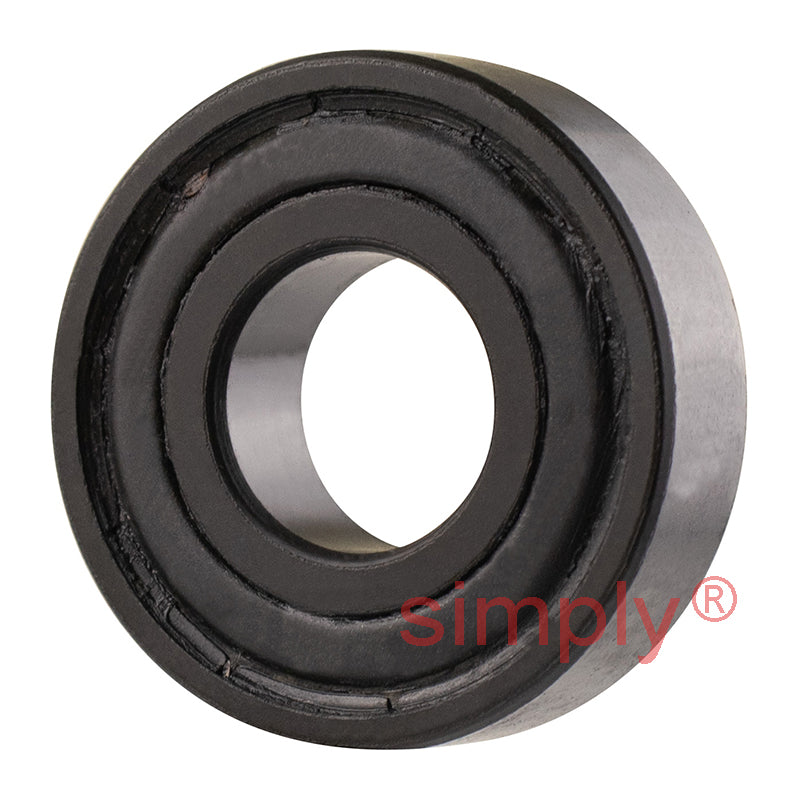

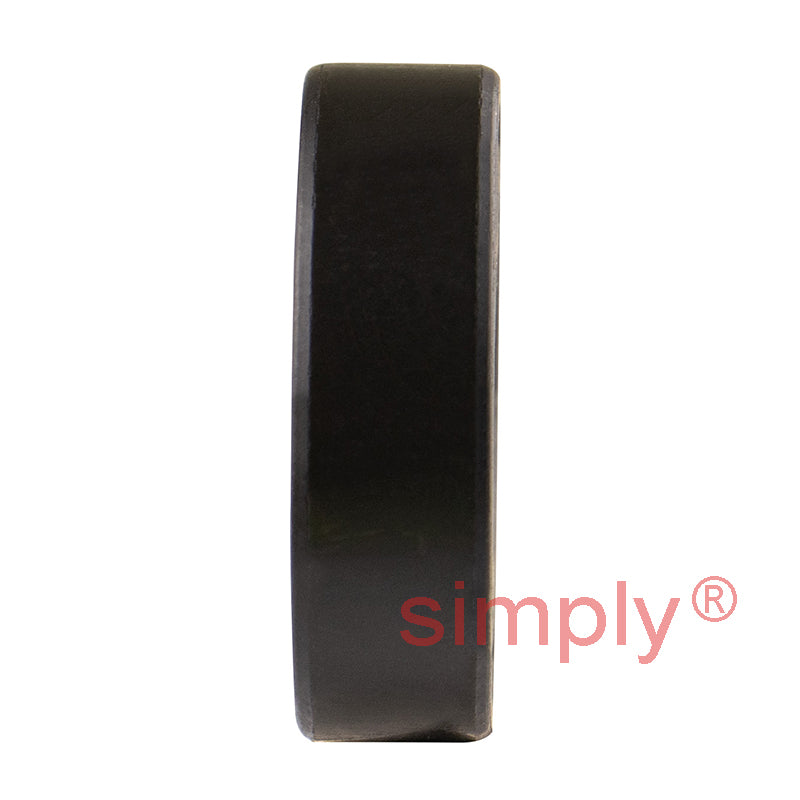

SKF 60012ZC5VA201 Single Row Deep Groove Ball Bearing High Temperature Type 12x28x8mm
SKF 60012ZC5VA201 Single Row Deep Groove Ball Bearing High Temperature Type 12x28x8mm
Regular price
€70,12
ex VAT
Regular price
Sale price
€70,12
ex VAT
In stock
Price Break
10+
€62,41
19+
€58,90
29+
€58,20
39+
€57,50
49+
€56,80
74+
€56,10
99+
€52,59
199+
€51,89
249+
€51,19
499+
€50,49
999+
€49,08
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 8mm |
| d1 | 16mm |
| D2 | 24.6mm |
| r1r2 | 0.3mm |
| Basic load rating Co | 2.36 kN |
| Weight | 0.022 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
