SKU: 6002-2RS2-C3-NKE

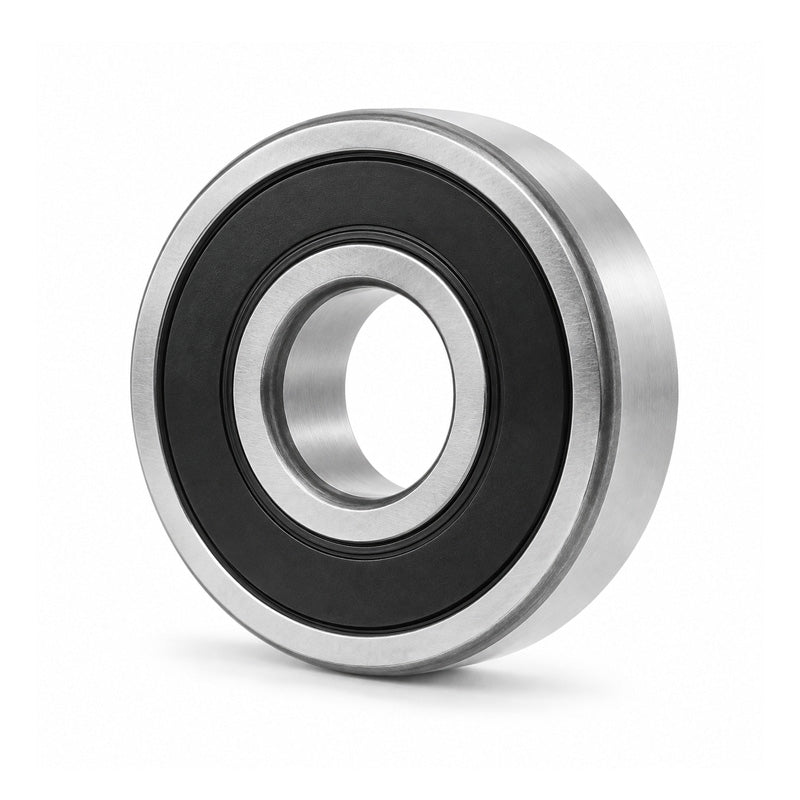

NKE 60022RS2C3 Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
NKE 60022RS2C3 Rubber Sealed Deep Groove Ball Bearing 15x32x9mm
Regular price
€6,68
ex VAT
Regular price
Sale price
€6,68
ex VAT
Equivalent to: 6002NSEC3 6002DUC3 6002RSC3 6002RSHC3 6002PC3 6002RSRC3 6002LUC3 60022NSEC3 6002DDUC3 60022RSC3 60022RS1C3 6002PPC3 60022RSRC3 6002LLU
In stock
Price Break
4+
€5,09
10+
€4,80
20+
€4,74
30+
€4,69
50+
€4,63
75+
€4,57
100+
€4,29
200+
€4,23
250+
€4,17
500+
€4,11
1000+
€4,00
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6002NSEC3 6002DUC3 6002RSC3 6002RSHC3 6002PC3 6002RSRC3 6002LUC3 60022NSEC3 6002DDUC3 60022RSC3 60022RS1C3 6002PPC3 60022RSRC3 6002LLU
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| Dynamic load C | 5.85 kN |
| Static load Co | 2.85 kN |
| Fatigue load limit Pu | 0.12 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.03 kg |
| d2 | 18.7mm |
| D2 | 28.2mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| da max | 18.5mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
