SKU: 6003/VA201-SKF

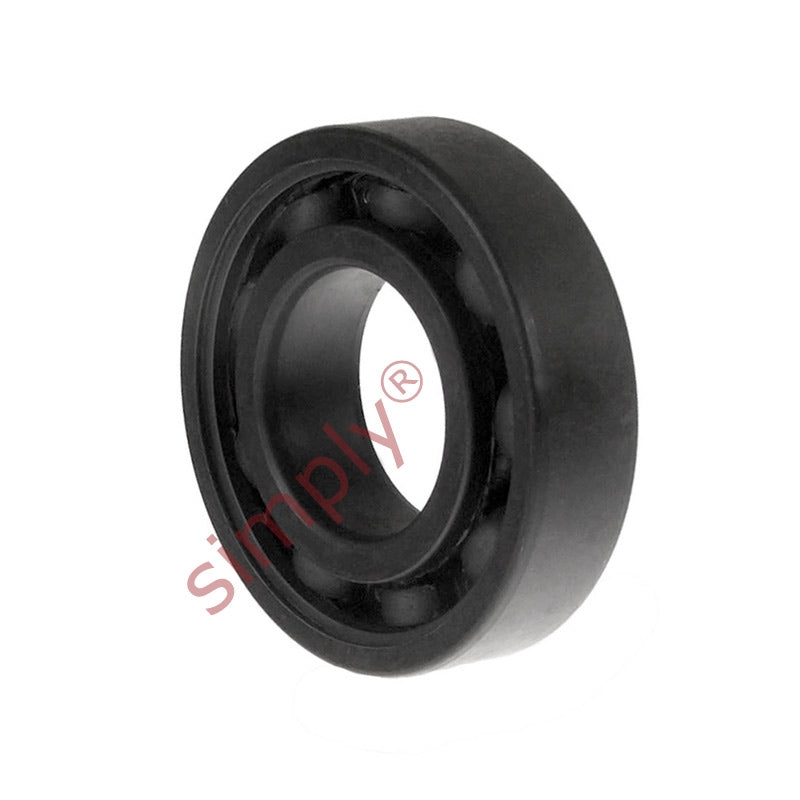

SKF 6003VA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x35x10mm
SKF 6003VA201 Single Row Deep Groove Ball Bearing High Temperature Type 17x35x10mm
Regular price
€43,63
ex VAT
Regular price
Sale price
€43,63
ex VAT
In stock
Price Break
10+
€38,83
19+
€36,65
29+
€36,21
39+
€35,78
49+
€35,34
74+
€34,90
99+
€32,72
199+
€32,29
249+
€31,85
499+
€31,41
999+
€30,54
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| d1 | 22.7mm |
| D2 | 31.2mm |
| r1r2 | 0.3mm |
| Basic load rating Co | 3.25 kN |
| Weight | 0.039 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
