SKU: 6005/C3-FAG

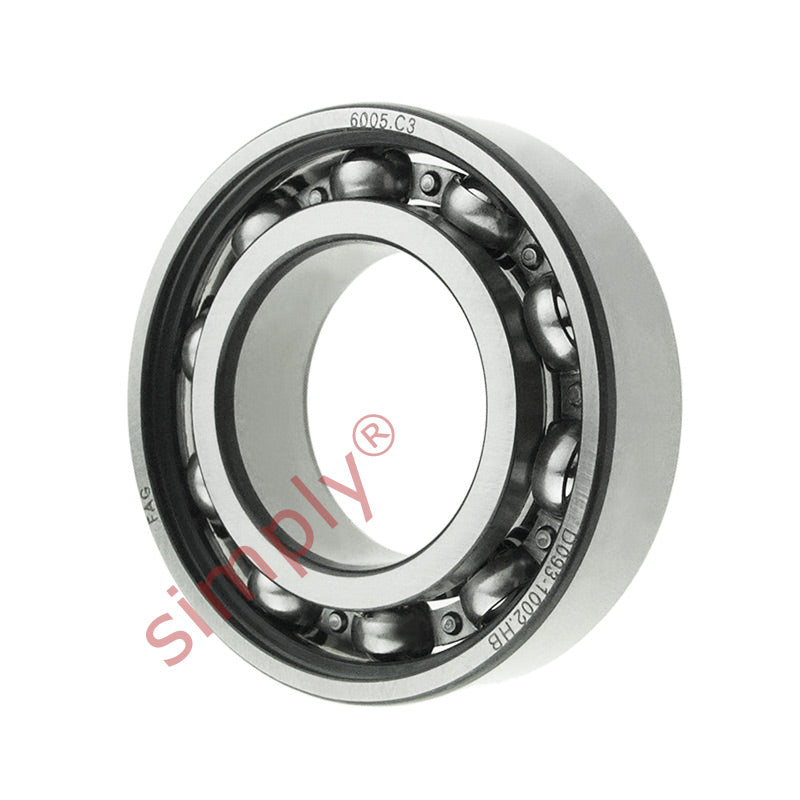

FAG 6005C3 Open Deep Groove Ball Bearing 25x47x12mm
FAG 6005C3 Open Deep Groove Ball Bearing 25x47x12mm
Regular price
€6,71
ex VAT
Regular price
Sale price
€6,71
ex VAT
Equivalent to: 6005 6005C3
In stock
Price Break
10+
€5,11
19+
€4,82
29+
€4,76
39+
€4,71
49+
€4,65
74+
€4,59
99+
€4,31
199+
€4,25
249+
€4,19
499+
€4,13
999+
€4,02
Share this product
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6005 6005C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dynamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.08 kg |
| d1 | 32mm |
| D1 | 40mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 28.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calc factor Kr | 0.025 |
| Calc factor | 14 |
