SKU: 6005-SKF

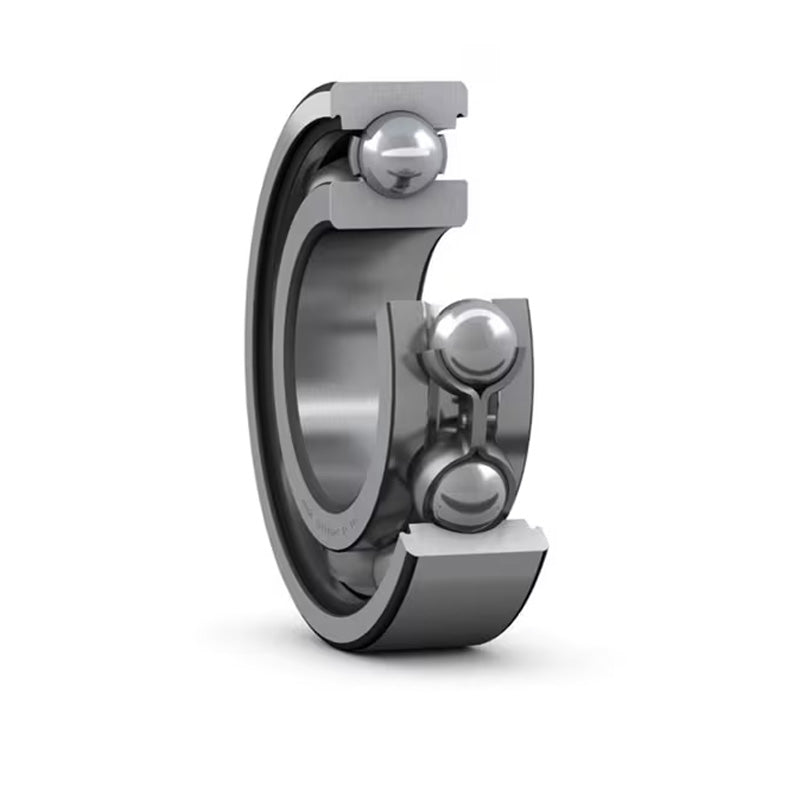

SKF 6005 Open Deep Groove Ball Bearing 25x47x12mm
SKF 6005 Open Deep Groove Ball Bearing 25x47x12mm
Regular price
€8,18
ex VAT
Regular price
Sale price
€8,18
ex VAT
Equivalent to: 9105K 9105 105KS 6105 3L05 EL25 ELL25
In stock
Price Break
4+
€6,23
10+
€5,88
20+
€5,81
30+
€5,74
50+
€5,67
75+
€5,60
100+
€5,25
200+
€5,18
250+
€5,11
500+
€5,04
1000+
€4,90
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 9105K 9105 105KS 6105 3L05 EL25 ELL25
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dynamic load | 11.9 kN |
| Static load | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Weight | 0.08 kg |
| d1 | 32mm |
| D1 | 40mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 28.2mm |
| Da max | 43.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 14 |
