SKU: 6005NR-MB

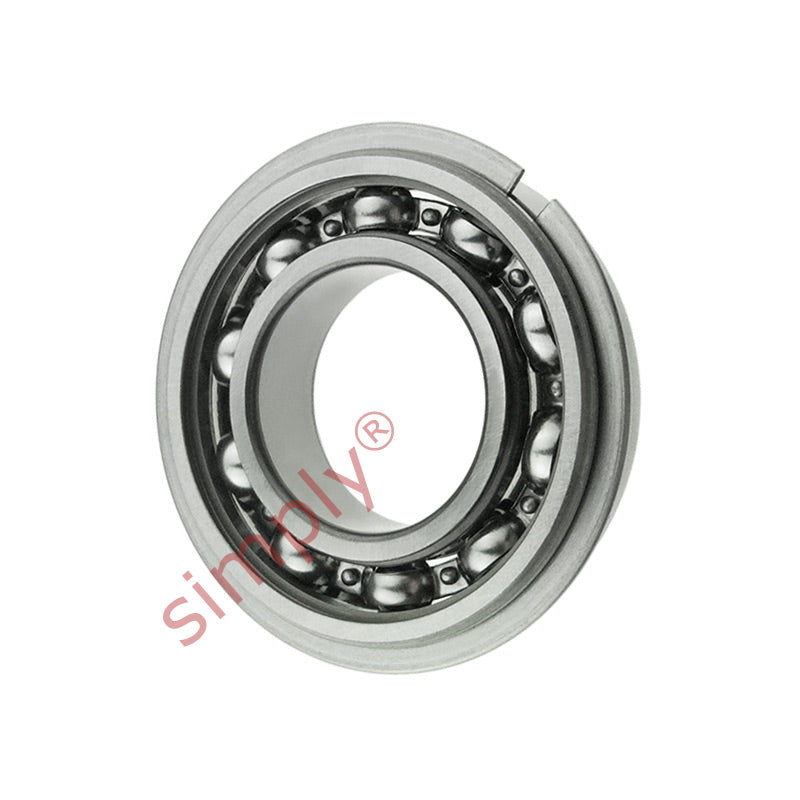

6005NR Deep Groove Ball Bearing with Snap Ring 25x47x12mm
6005NR Deep Groove Ball Bearing with Snap Ring 25x47x12mm
Regular price
€16,76
ex VAT
Regular price
Sale price
€16,76
ex VAT
In stock
Price Break
10+
€14,92
19+
€14,08
29+
€13,91
39+
€13,74
49+
€13,58
74+
€13,41
99+
€12,57
199+
€12,40
249+
€12,23
499+
€12,07
999+
€11,73
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 12mm |
| Dyamic load C | 11.9 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.275 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.08 kg |
| d1 | 32mm |
| d2 | 40mm |
| D2 | 42.2mm |
| r1r2 min | 0.6mm |
| da min | 28.2 |
