SKU: 6009-2NSE-NACHI

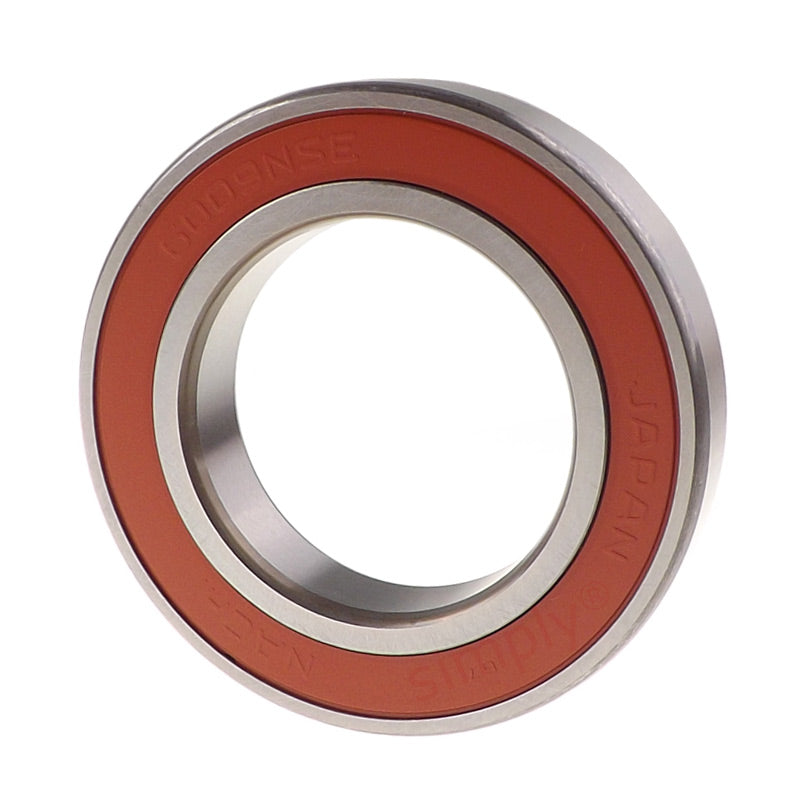

NACHI 60092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
NACHI 60092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x75x16mm
Regular price
€13,10
ex VAT
Regular price
Sale price
€13,10
ex VAT
Equivalent to: 6009NSE 6009DU 6009RS 6009RSH 6009P 6009RSR 6009LU 6009DDU 60092RS 60092RS1 60092RSH 6009PP 60092RSR 60092RSR
In stock
Price Break
5+
€9,98
9+
€9,42
19+
€9,30
29+
€9,19
49+
€9,08
74+
€8,97
99+
€8,41
199+
€8,30
249+
€8,18
499+
€8,07
999+
€7,85
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6009NSE 6009DU 6009RS 6009RSH 6009P 6009RSR 6009LU 6009DDU 60092RS 60092RS1 60092RSH 6009PP 60092RSR 60092RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 75mm |
| Width B | 16mm |
| Min radius r | 1mm |
| Dynamic load | 20900 kN |
| Static load | 15200 kN |
| Max speed | 9200 rpm |
| da min | 50mm |
| Da max | 70mm |
| ra max | 1mm |
| Weight | 0.246 kg |
