SKU: 6013-2RS-CDX

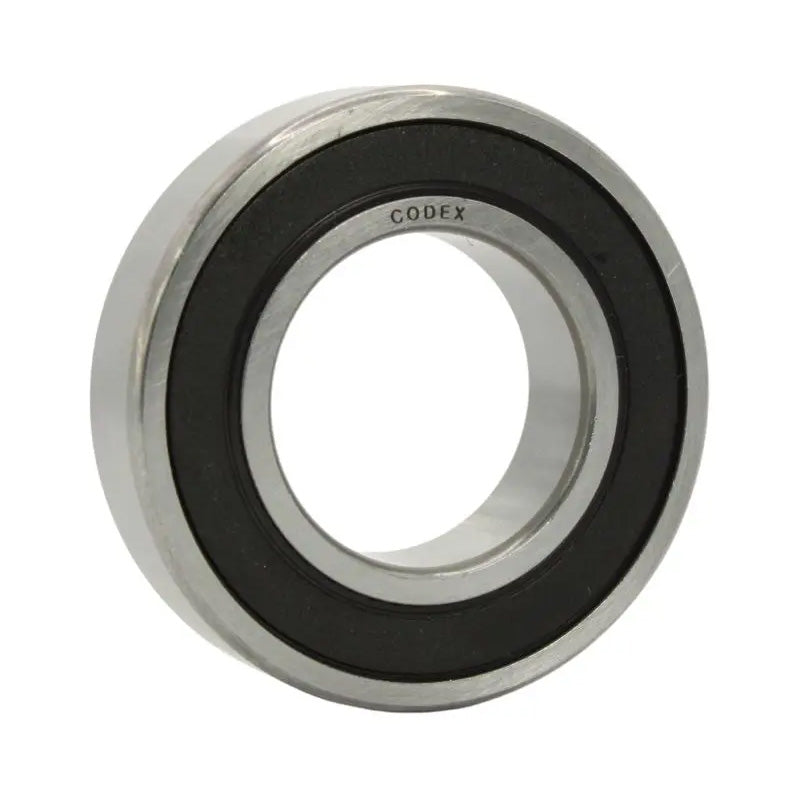

Codex 60132RS Rubber Sealed Deep Groove Ball Bearing 65x100x18mm
Codex 60132RS Rubber Sealed Deep Groove Ball Bearing 65x100x18mm
Regular price
€27,72
ex VAT
Regular price
Sale price
€27,72
ex VAT
Equivalent to: 60132RS 60132RSH 60132RS1 60132RSR 60132RSL 6013LFS 6013EE 6013DU 6013LLU EL652RS 6013PP 9113PP 113KSZZ 993L13 6113KK 10L65
In stock
Price Break
4+
€21,11
10+
€19,92
20+
€19,68
30+
€19,45
50+
€19,21
75+
€18,97
100+
€17,79
200+
€17,55
250+
€17,31
500+
€17,07
1000+
€16,60
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60132RS 60132RSH 60132RS1 60132RSR 60132RSL 6013LFS 6013EE 6013DU 6013LLU EL652RS 6013PP 9113PP 113KSZZ 993L13 6113KK 10L65
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| Dynamic load C | 31.9 kN |
| Static load Co | 25 kN |
| Fatigue load limit Pu | 1.06 |
| Reference speed | 14000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 0.44 kg |
| d1 | 76.3mm |
| D2 | 91.5mm |
| r1r2 | 1.1mm |
| da min | 71mm |
| Da max | 94mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
