SKU: 6017-2Z-EU

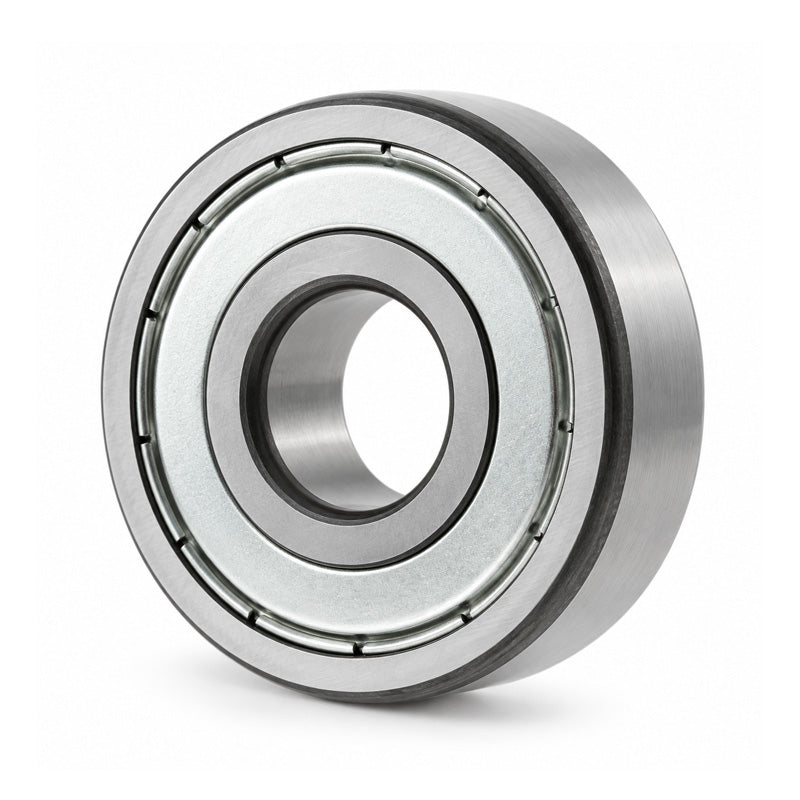

6017ZZ Budget Metal Shielded Deep Groove Ball Bearing 85x130x22mm
Equivalent to: 6017ZZ 60172Z 6017ZZ 60172ZR 6017ZZE 6017FF 6017DD 6017DDC 6017KDDC EL852Z EL85ZZ 9117KDD 9117FF 117KSFF 773L17 6117PP
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6017ZZ 60172Z 6017ZZ 60172ZR 6017ZZE 6017FF 6017DD 6017DDC 6017KDDC EL852Z EL85ZZ 9117KDD 9117FF 117KSFF 773L17 6117PP
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 85mm |
|---|---|
| D | 130mm |
| B | 22mm |
| r min | 1.1mm |
| Dynamic load Cr | 49.5 kN |
| Static load Cor | 43.1 kN |
| Speed in grease | 5000 rpm |
| Speed in oil | 5900 rpm |
