SKU: 6024-2Z/VA208-SKF

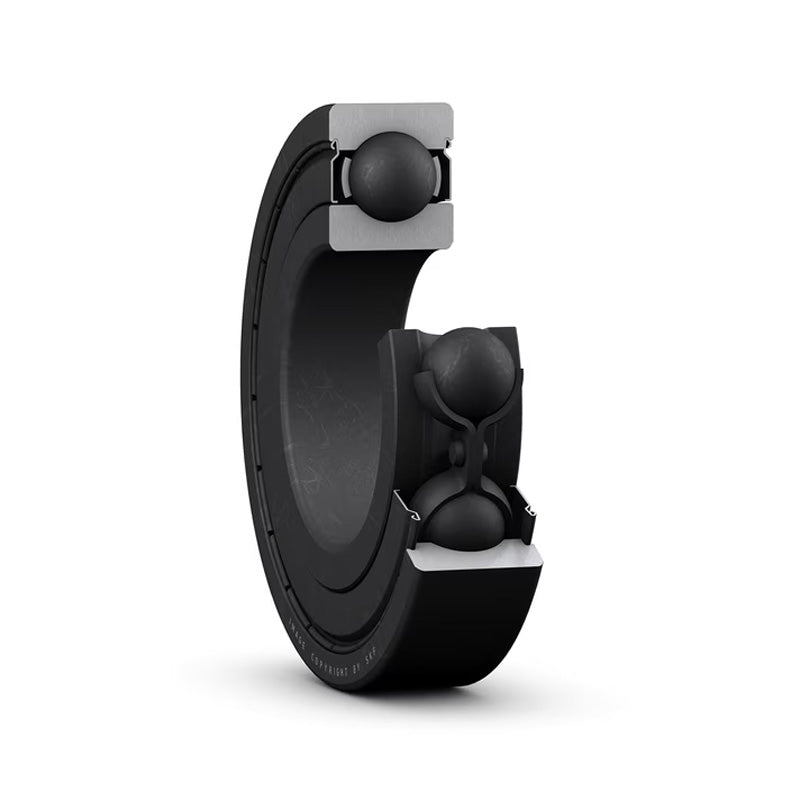

SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm
SKF 60242ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 120x180x28mm
Regular price
€933,60
ex VAT
Regular price
Sale price
€933,60
ex VAT
In stock
Price Break
10+
€711,03
19+
€671,08
29+
€663,10
39+
€655,11
49+
€647,12
74+
€639,13
99+
€599,18
199+
€591,19
249+
€583,20
499+
€575,22
999+
€559,24
Share this product
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| d1 | 139mm |
| D2 | 166mm |
| r1r2 | 2mm |
| Basic load rating Co | 80 kN |
| Weight | 1.9 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
