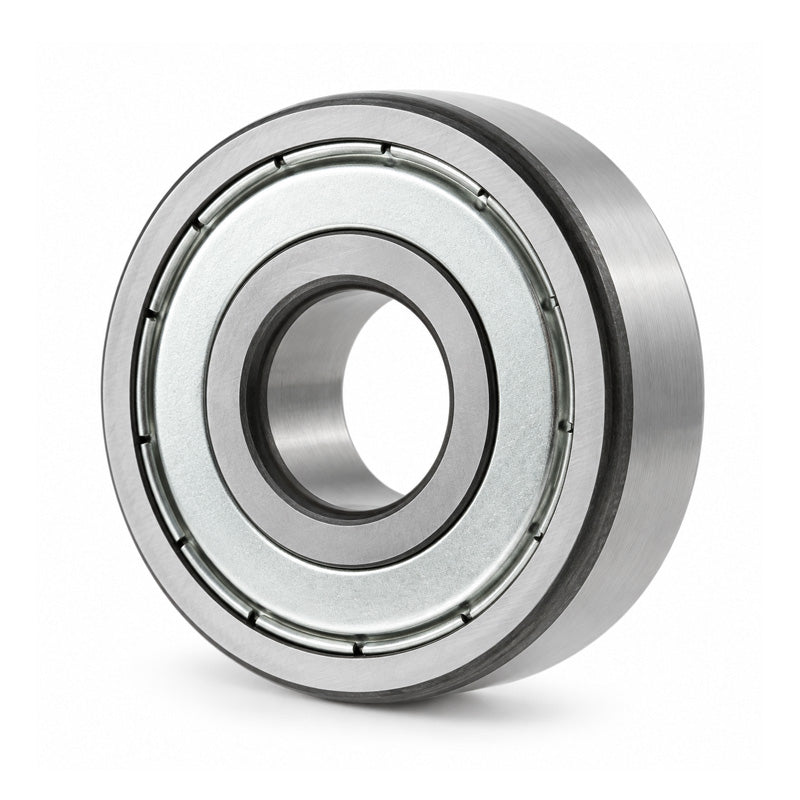

NACHI 6024ZZ Metal Shielded Deep Groove Ball Bearing 120x180x28mm
NACHI 6024ZZ Metal Shielded Deep Groove Ball Bearing 120x180x28mm
Regular price
€223,97
ex VAT
Regular price
Sale price
€223,97
ex VAT
Equivalent to: 6024ZZE 60242Z 6024.2Z 6024KDD 6024DD 60242ZR 6024FF
In stock
Price Break
10+
€199,33
19+
€188,13
29+
€185,90
39+
€183,66
49+
€181,42
74+
€179,18
99+
€167,98
199+
€165,74
249+
€163,50
499+
€161,26
999+
€156,78
Couldn't load pickup availability
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6024ZZE 60242Z 6024.2Z 6024KDD 6024DD 60242ZR 6024FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 180mm |
| Width B | 28mm |
| Min radius r | 2mm |
| Dynamic load | 88000 kN |
| Static load | 79500 kN |
| Max speed | 3600 rpm |
| da min | 128mm |
| Da max | 172mm |
| ra max | 2mm |
| Weight | 2.67 kg |
