SKU: 618/9-MB

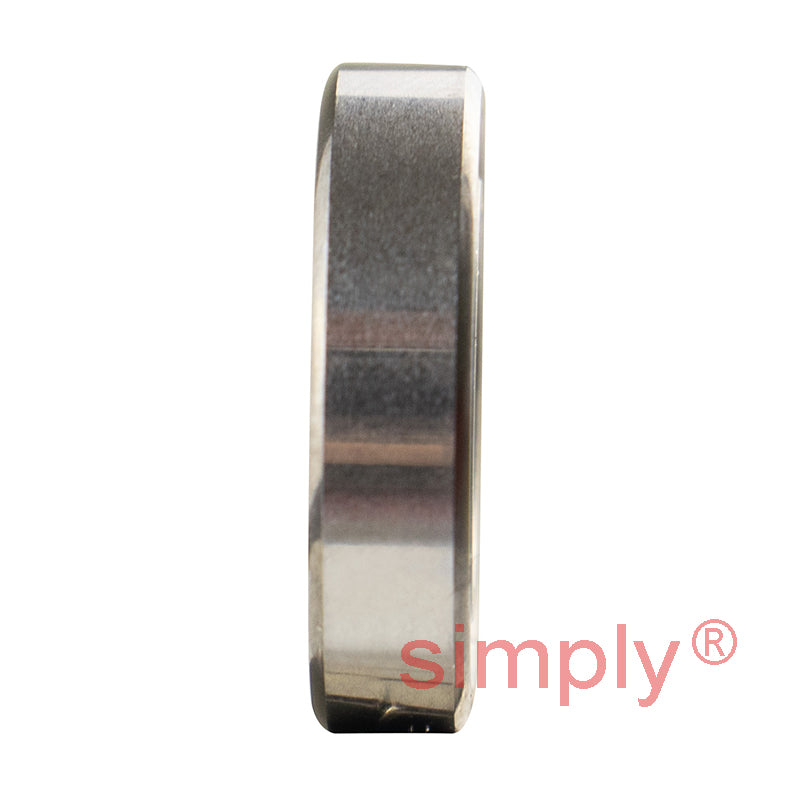

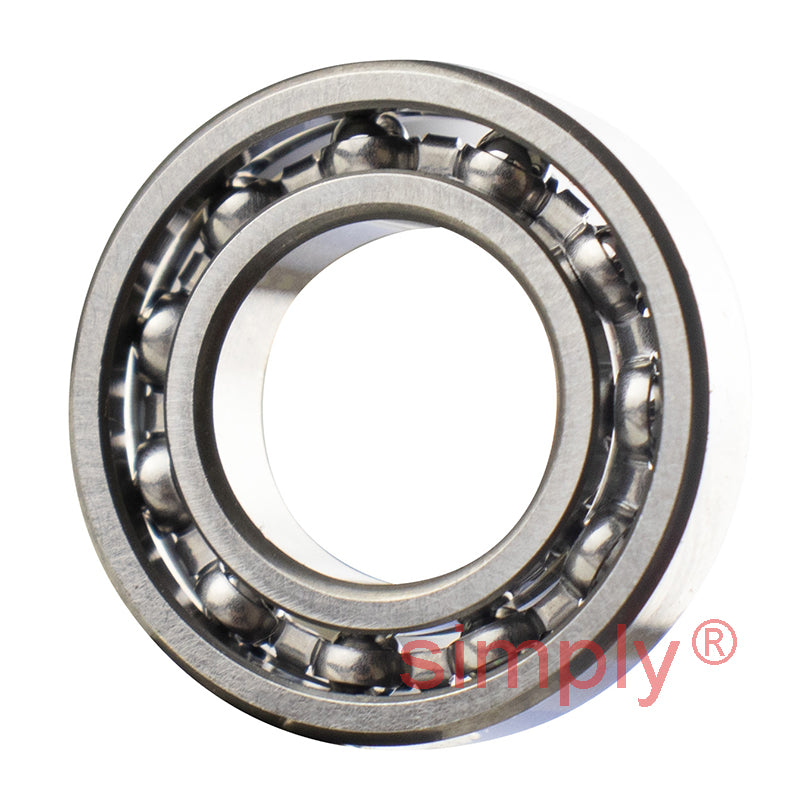

Major Brand 618/9 Open Deep Groove Ball Bearing 9x17x4mm
Major Brand 618/9 Open Deep Groove Ball Bearing 9x17x4mm
Regular price
€8,57
ex VAT
Regular price
Sale price
€8,57
ex VAT
Equivalent to: 689
In stock
Price Break
10+
€6,52
19+
€6,15
29+
€6,08
39+
€6,01
49+
€5,93
74+
€5,86
99+
€5,49
199+
€5,42
249+
€5,35
499+
€5,27
999+
€5,13
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 689
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 9mm
- Outside Diameter:
- 17mm
- Width:
- 4mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 9mm |
|---|---|
| D | 17mm |
| B | 4mm |
| Dynamic load C | 1.43 kN |
| Static load Co | 0.64 kN |
| Fatigue load limit Pu | 0.027 kN |
| Reference speed | 85000 rpm |
| Limiting speed | 53000 rpm |
| Mass | 0.0034 kg |
| d1 | 11.1mm |
| D1 | 15mm |
| r1r2 min | 0.2mm |
| da min | 10.4mm |
| Da max | 15.6mm |
| ra max | 0.2mm |
| Calc factor Kr | 0.015 |
| Calc factor | 11 |
