SKU: 61805-2RSR-MB

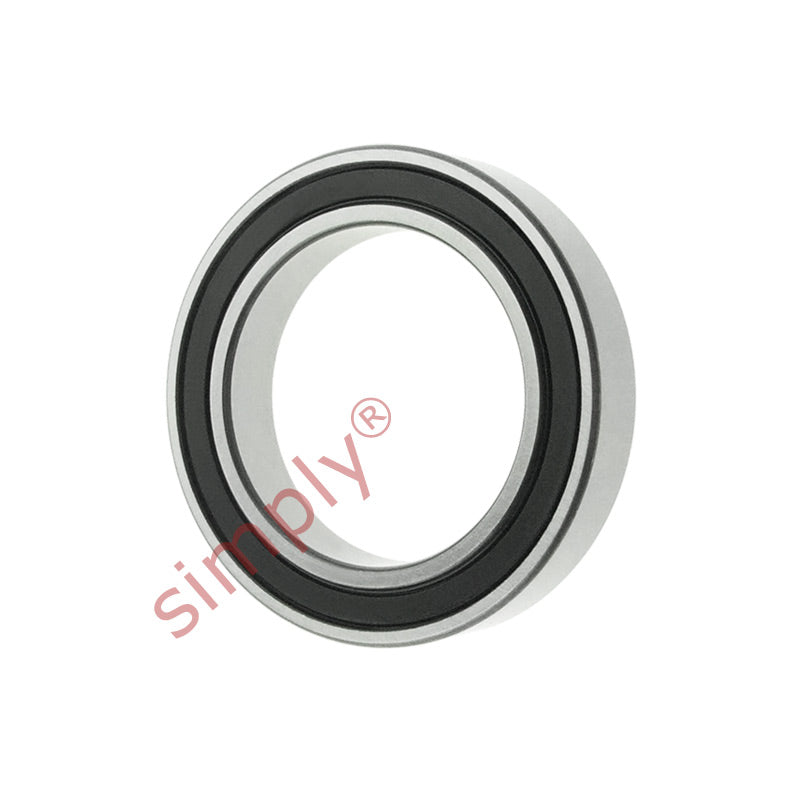

Major Brand 618052RSR Rubber Sealed Thin Deep Groove Ball Bearing 25x37x7mm
Equivalent to: 61805NSE 61805DU 61805RS 61805RSH 61805P 61805RSR 61805LU 6805NSE 6805DU 6805RS 6805RSH 6805P 6805RSR 6805LU 618052NSE 61805DDU 618052RS 618052RS1 618052RSH 61805PP 61805LLU 68052NSE 6805DDU 68052RS 68052RS1 68052RSH 6805PP 68052RSR 6805LLU
In stock
Price Break
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 61805NSE 61805DU 61805RS 61805RSH 61805P 61805RSR 61805LU 6805NSE 6805DU 6805RS 6805RSH 6805P 6805RSR 6805LU 618052NSE 61805DDU 618052RS 618052RS1 618052RSH 61805PP 61805LLU 68052NSE 6805DDU 68052RS 68052RS1 68052RSH 6805PP 68052RSR 6805LLU
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 25mm |
|---|---|
| D | 37mm |
| B | 7mm |
| Dynamic load C | 4.36 kN |
| Static load Co | 2.6 kN |
| Fatigue load limit Pu | 0.125 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.022 kg |
| d2 | 27.4mm |
| D2 | 34.3mm |
| r1r2 min | 0.3mm |
| da min | 27 |
