SKU: 61812-2Z-EU

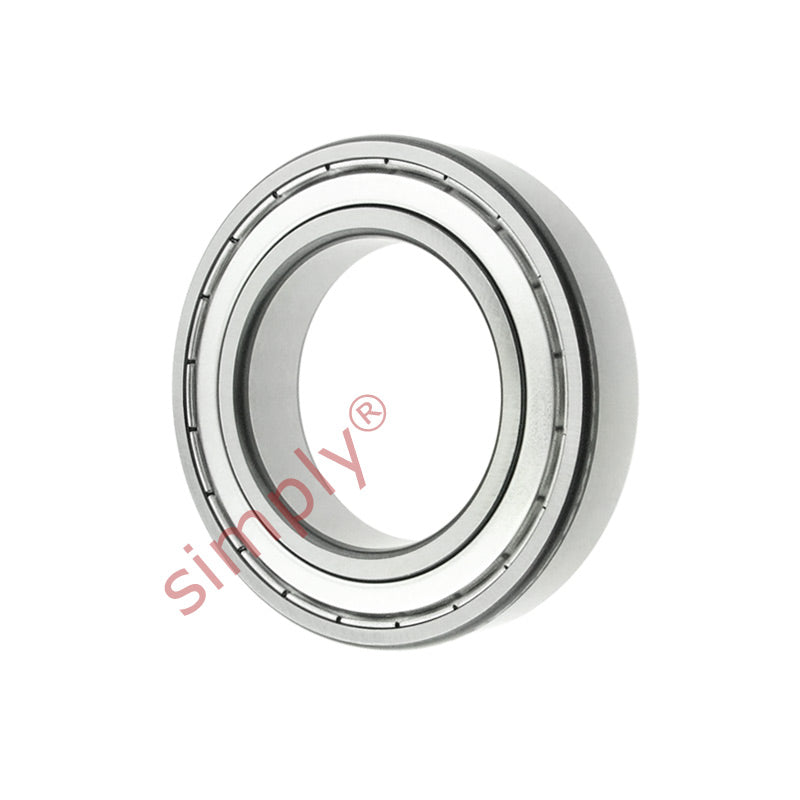

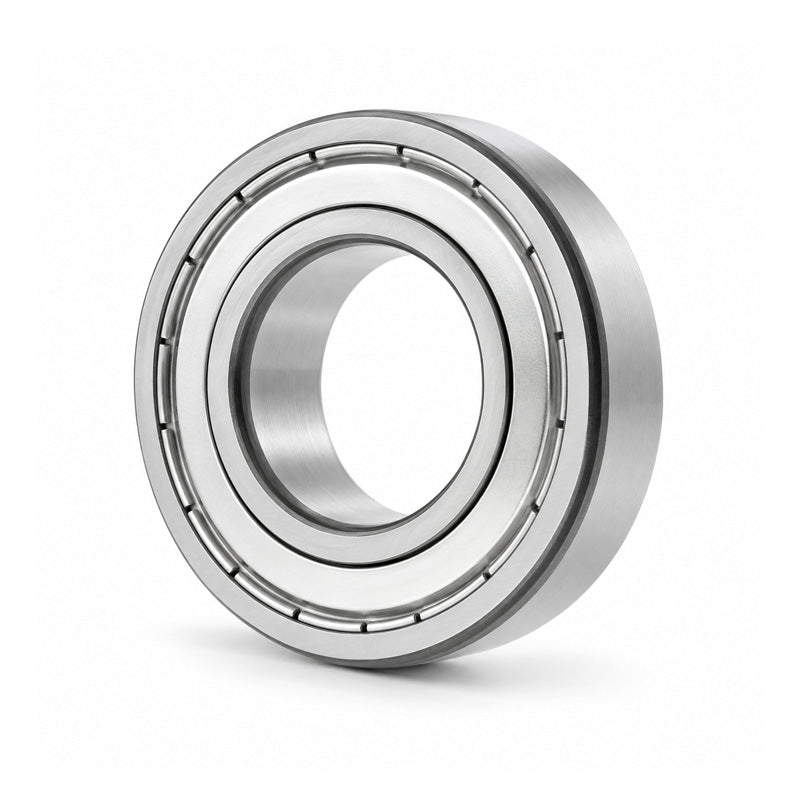

6812ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 60x78x10mm
Equivalent to: 61812ZZE 61812ZZ 61812.2Z 61812KDD 61812DD 61812FF 6812ZZE 6812ZZ 68122Z 6812.2Z 6812KDD 6812DD 68122ZR 6812FF 618122ZR 61812ZZE 61812ZZ 618122ZR 618122RS2
In stock
Price Break
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61812ZZE 61812ZZ 61812.2Z 61812KDD 61812DD 61812FF 6812ZZE 6812ZZ 68122Z 6812.2Z 6812KDD 6812DD 68122ZR 6812FF 618122ZR 61812ZZE 61812ZZ 618122ZR 618122RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 60mm |
|---|---|
| D | 78mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 11.5 kN |
| Static load Cor | 10.6 kN |
| Speed in grease | 8000 rpm |
| Speed in oil | 9400 rpm |
