SKU: 61818-2Z-EU

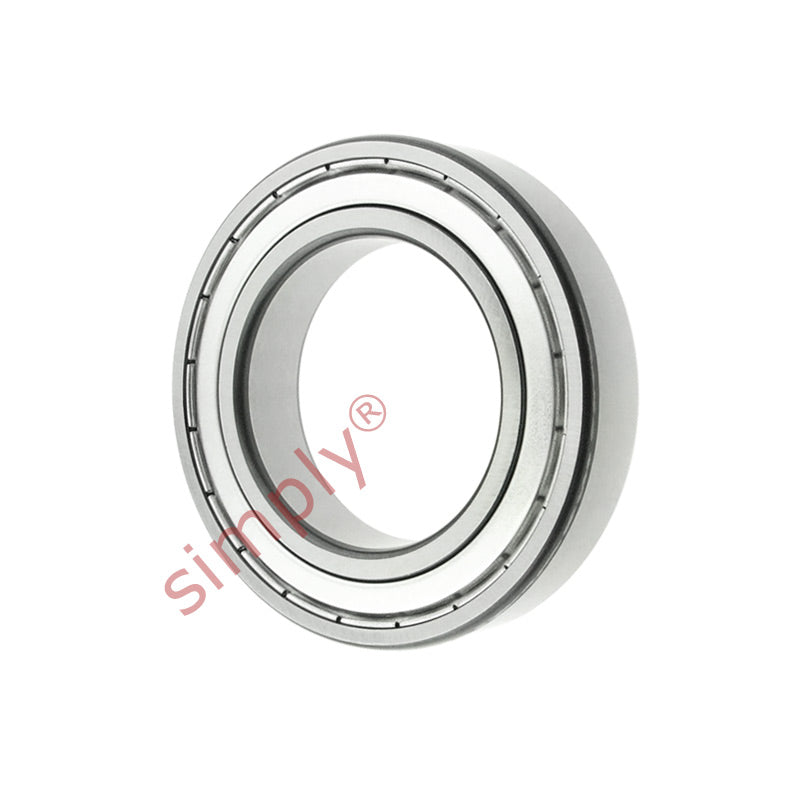

6818ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 90x115x13mm
Equivalent to: 61818ZZE 61818ZZ 61818.2Z 61818KDD 61818DD 61818FF 6818ZZE 6818ZZ 68182Z 6818.2Z 6818KDD 6818DD 68182ZR 6818FF 618182ZR 61818ZZE 61818ZZ 618182ZR 618182RS2
In stock
Price Break
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61818ZZE 61818ZZ 61818.2Z 61818KDD 61818DD 61818FF 6818ZZE 6818ZZ 68182Z 6818.2Z 6818KDD 6818DD 68182ZR 6818FF 618182ZR 61818ZZE 61818ZZ 618182ZR 618182RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 115mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 90mm |
|---|---|
| D | 115mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 19 kN |
| Static load Cor | 19.7 kN |
| Speed in grease | 5300 rpm |
| Speed in oil | 6300 rpm |
