SKU: 61860MA-SKF

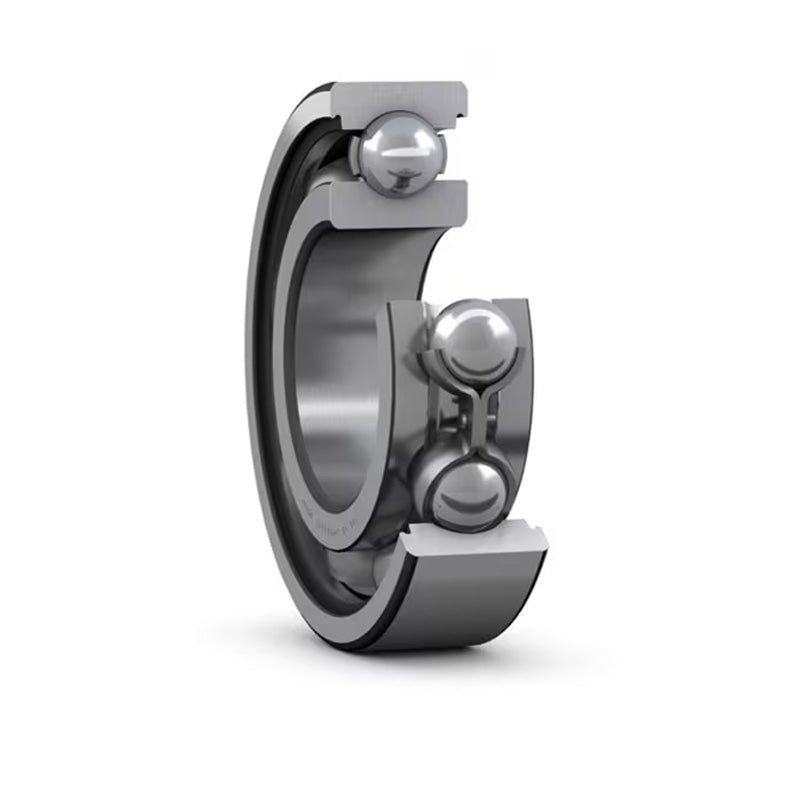

SKF 61860MA Open Type Thin Section Deep Groove Ball Bearing 300x380x38mm
SKF 61860MA Open Type Thin Section Deep Groove Ball Bearing 300x380x38mm
Regular price
€2.443,31
ex VAT
Regular price
Sale price
€2.443,31
ex VAT
In stock
Price Break
4+
€1.860,82
10+
€1.756,28
20+
€1.735,37
30+
€1.714,46
50+
€1.693,55
75+
€1.672,64
100+
€1.568,10
200+
€1.547,20
250+
€1.526,29
500+
€1.505,38
1000+
€1.463,56
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 380mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 300mm |
|---|---|
| D | 380mm |
| B | 38mm |
| Dynamic load | 172 kN |
| Static load | 245 kN |
| Fatigue load limit Pu | 5.6 kN |
| Reference speed | 3 200 rpm |
| Limiting speed | 2 600 rpm |
| Weight | 10.5 kg |
| d1 | 326mm |
| D1 | 354mm |
| D2 | 2.1mm |
| r1r2 min | 309mm |
| da min | 371mm |
| Da max | 2mm |
| ra max | 0.015mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
