SKU: 619/7-2Z-SKF

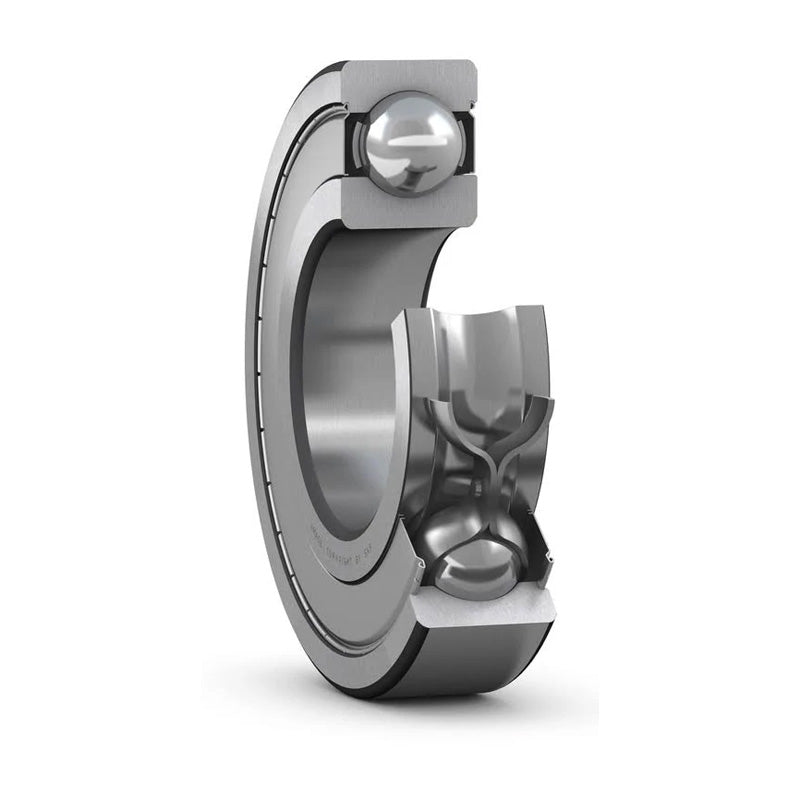

SKF 619/72Z Metal Shielded Deep Groove Ball Bearing 7x17x5mm
SKF 619/72Z Metal Shielded Deep Groove Ball Bearing 7x17x5mm
Regular price
€10,08
ex VAT
Regular price
Sale price
€10,08
ex VAT
Equivalent to: 619/7ZZ 6972Z 697ZZ 61972Z 619/72ZR 6197.ZZ 61972Z 6197ZZ
In stock
Price Break
4+
€7,68
10+
€7,25
20+
€7,16
30+
€7,08
50+
€6,99
75+
€6,90
100+
€6,47
200+
€6,39
250+
€6,30
500+
€6,21
1000+
€6,04
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 619/7ZZ 6972Z 697ZZ 61972Z 619/72ZR 6197.ZZ 61972Z 6197ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 17mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 7mm |
|---|---|
| D | 17mm |
| B | 5mm |
| Dynamic load C | 1.48 kN |
| Static load Co | 0.56 kN |
| Fatigue load limit Pu | 0.024 kN |
| Reference speed | 90000 rpm |
| Limiting speed | 45000 rpm |
| Weight | 0.0049 kg |
| d1 | 9.8mm |
| d2 | 0mm |
| D2 | 15.2mm |
| r1r2 min | 0.3mm |
| da min | 9mm |
| da max | 0mm |
| Da max | 15mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 10 |
