SKU: 61901-ZZ-CDX

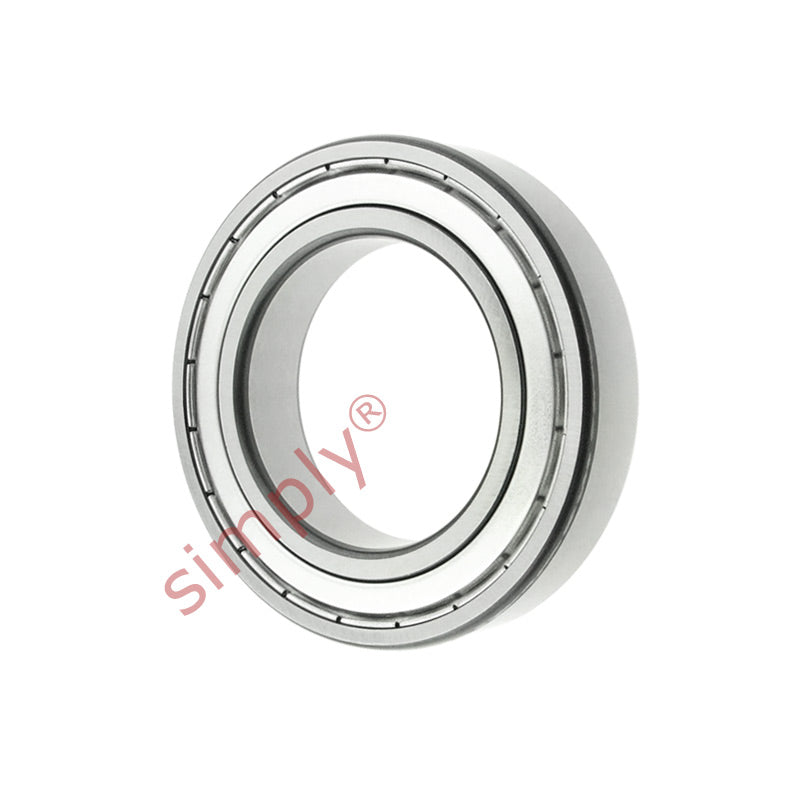

Codex 61901ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 61901ZZ 619012Z 619012ZR 61901ZZE 61901FF 61901DD 61901DDC 61901KDDC EL12ZZ EL122Z
In stock
Price Break
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61901ZZ 619012Z 619012ZR 61901ZZE 61901FF 61901DD 61901DDC 61901KDDC EL12ZZ EL122Z
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 6mm |
| Dynamic Load | 2.25 kN |
| Static Load | 0.98 kN |
| Fatigue Load Limit Pu | 0.043 |
| Reference Speed | 70000 rpm |
| Limiting Speed | 32000 rpm |
| Weight | 0.011kg |
| d1 | 15.5mm |
| D2 | 21.4mm |
| r1r2 min | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3 |
| Calc factor kr | 0.02 |
| Calc factor Cor f0 | 9.7 |
