SKU: 61903-2RS1-EU

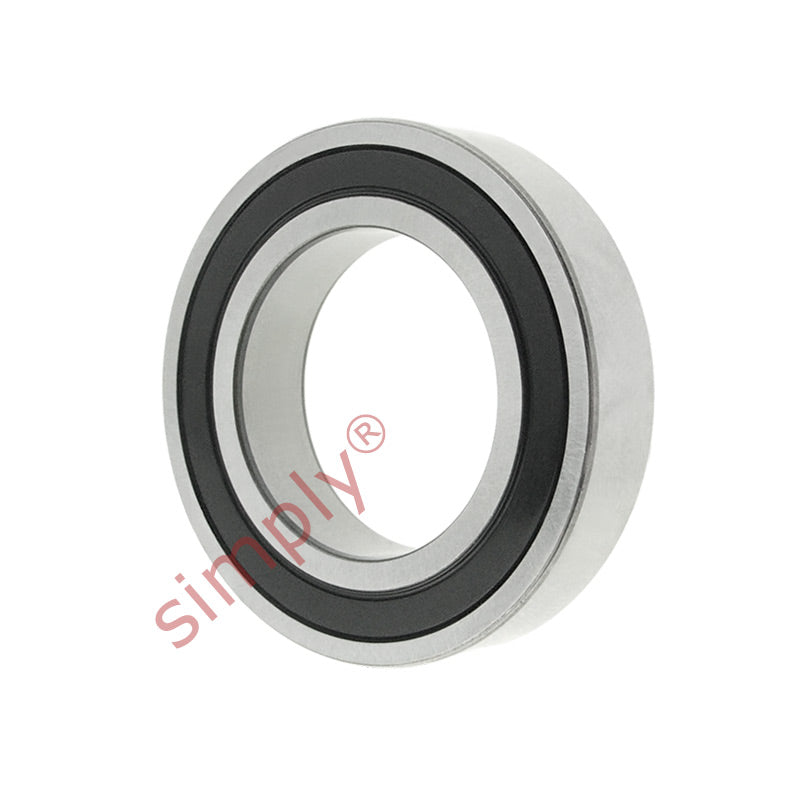

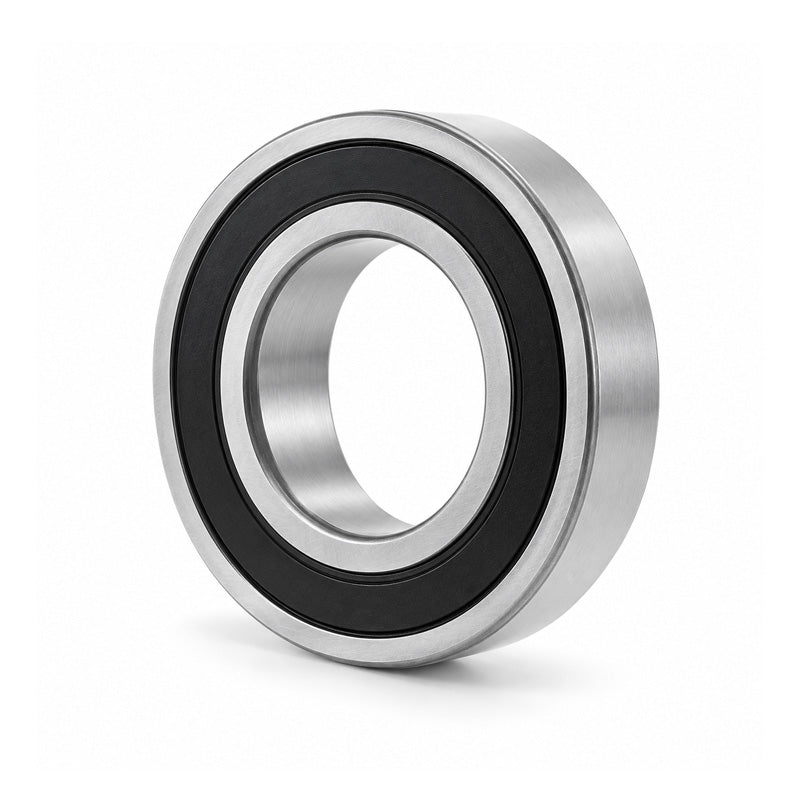

69032RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 61903NSE 61903DU 61903RS 619032RSH 61903P 61903RSR 61903LU 6903NSE 6903DU 6903RS 69032RSH 6903P 6903RSR 6903LU 619032NSE 61903DDU 619032RS 6190322RSH 61903PP 619032RSR 61903LLU 619032RS2 61903RS2 619032RSH 619032RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61903NSE 61903DU 61903RS 619032RSH 61903P 61903RSR 61903LU 6903NSE 6903DU 6903RS 69032RSH 6903P 6903RSR 6903LU 619032NSE 61903DDU 619032RS 6190322RSH 61903PP 619032RSR 61903LLU 619032RS2 61903RS2 619032RSH 619032RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 30mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4.6 kN |
| Static load Cor | 2.55 kN |
| Speed in grease | 23000 rpm |
| Speed in oil | 28000 rpm |
