SKU: 6201-2Z-SKF

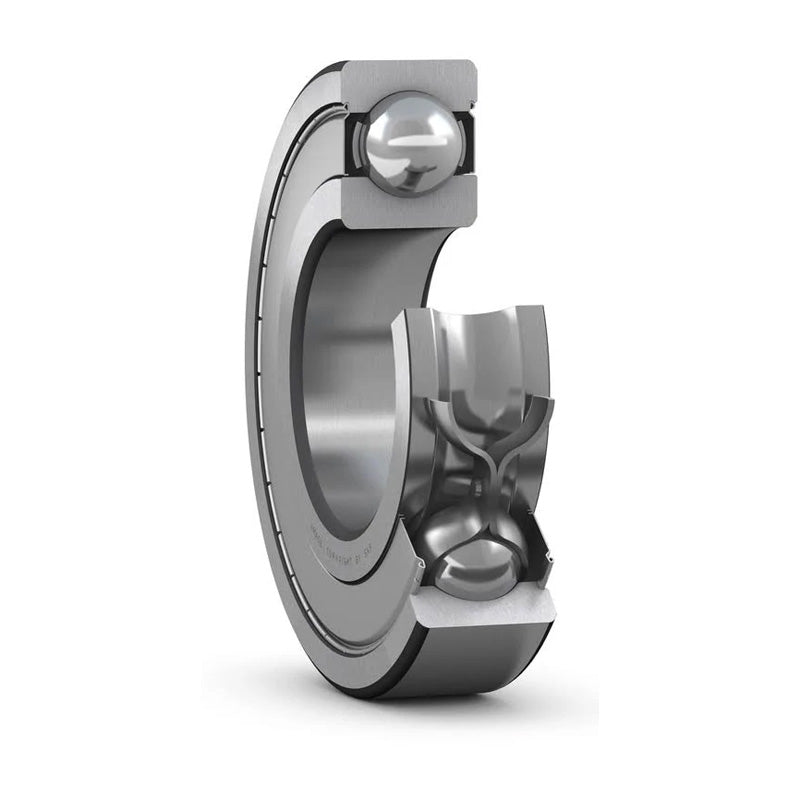

SKF 62012Z Metal Shielded Deep Groove Ball Bearing 12x32x10mm
SKF 62012Z Metal Shielded Deep Groove Ball Bearing 12x32x10mm
Regular price
€6,26
ex VAT
Regular price
Sale price
€6,26
ex VAT
Equivalent to: 6201ZZE 6201ZZ 6201.2Z 6201KDD 6201DD 6201FF 62012ZR 6201.ZZ 62012Z 6201ZZ
In stock
Price Break
4+
€4,77
10+
€4,50
20+
€4,45
30+
€4,39
50+
€4,34
75+
€4,29
100+
€4,02
200+
€3,97
250+
€3,91
500+
€3,86
1000+
€3,75
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6201ZZE 6201ZZ 6201.2Z 6201KDD 6201DD 6201FF 62012ZR 6201.ZZ 62012Z 6201ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 3.1 kN |
| Fatigue load limit Pu | 0.132 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Weight | 0.037 kg |
| d1 | 0mm |
| d2 | 16.6mm |
| D2 | 27.4mm |
| r1r2 min | 0.6mm |
| da min | 16.2mm |
| da max | 16.5mm |
| Da max | 27.8mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 12 |
