SKU: 6206ETN9/C3-SKF

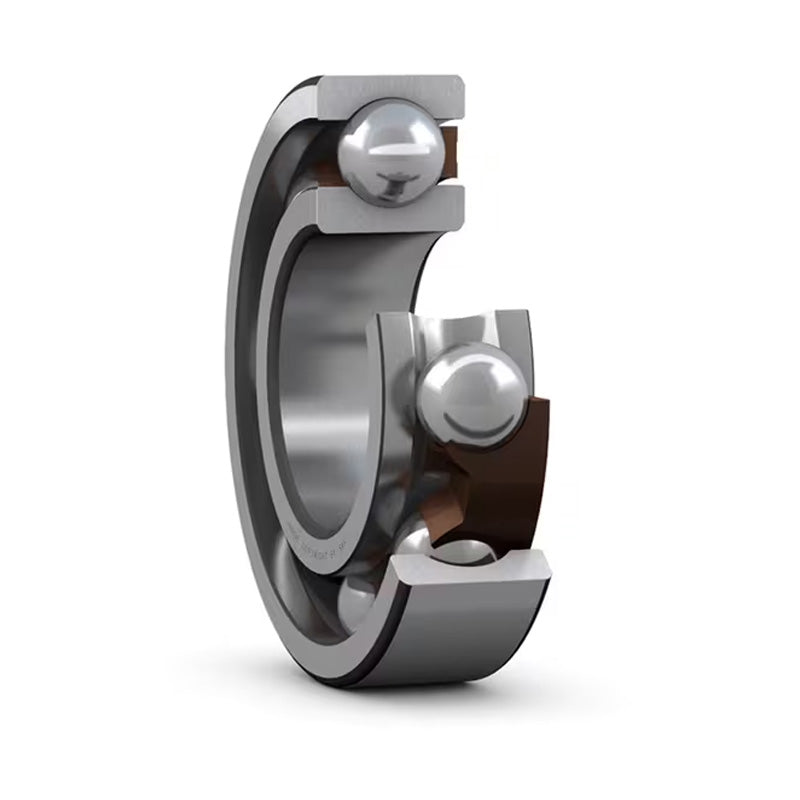

SKF 6206ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm
SKF 6206ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x62x16mm
Regular price
€40,38
ex VAT
Regular price
Sale price
€40,38
ex VAT
In stock
Price Break
10+
€35,94
19+
€33,92
29+
€33,52
39+
€33,11
49+
€32,71
74+
€32,30
99+
€30,29
199+
€29,88
249+
€29,48
499+
€29,07
999+
€28,27
Couldn't load pickup availability
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dynamic load | 23.4 kN |
| Static load | 12.9 kN |
| Fatigue load limit Pu | 0.54 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 15000 rpm |
| Weight | 0.19 kg |
| d1 | 39.5mm |
| D1 | 52.9mm |
| D2 | n/amm |
| r1r2 min | 1mm |
| da min | 35.6mm |
| Da max | 56.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 13 |
