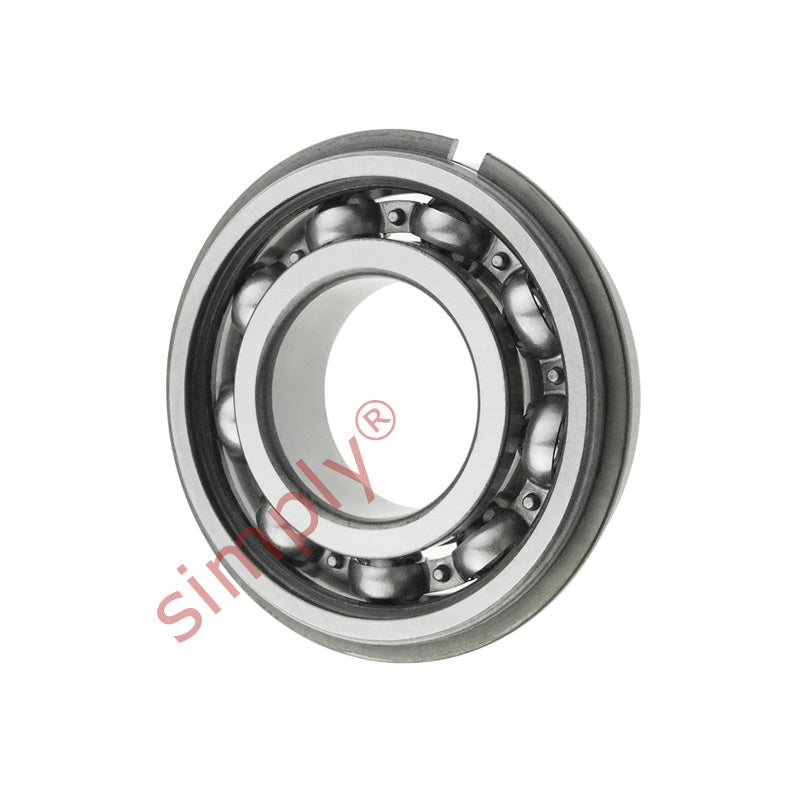

6206NR Deep Groove Ball Bearing with Snap Ring 30x62x16mm
6206NR Deep Groove Ball Bearing with Snap Ring 30x62x16mm
Regular price
€10,06
ex VAT
Regular price
Sale price
€10,06
ex VAT
In stock
Price Break
10+
€7,66
19+
€7,23
29+
€7,15
39+
€7,06
49+
€6,97
74+
€6,89
99+
€6,46
199+
€6,37
249+
€6,29
499+
€6,20
999+
€6,03
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dyamic load C | 20.3 kN |
| Static load Co | 11.2 kN |
| Fatigue load limit Pu | 0.48 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 15000 rpm |
| Mass | 0.2 kg |
| d1 | 40.4mm |
| d2 | 51.6mm |
| D2 | 54.1mm |
| r1r2 min | 1mm |
| da min | 35.6 |
