SKU: 6208-2RS/C3-CDX

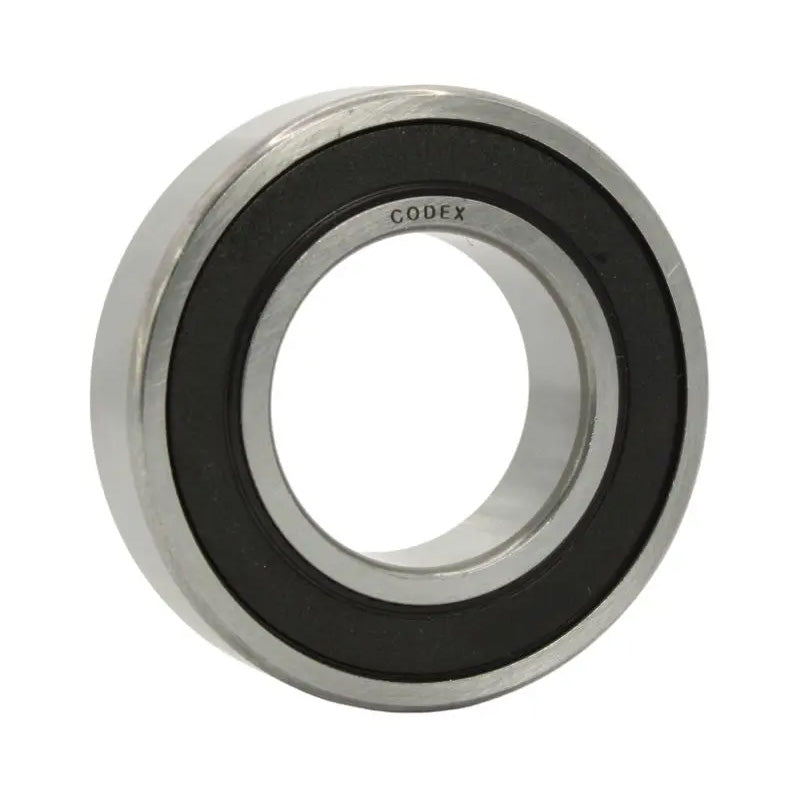

Codex 62082RSC3 Rubber Sealed Deep Groove Ball Bearing 40x80x18mm
Codex 62082RSC3 Rubber Sealed Deep Groove Ball Bearing 40x80x18mm
Regular price
€14,65
ex VAT
Regular price
Sale price
€14,65
ex VAT
Equivalent to: 62082RSC3 62082RSHC3 62082RS1C3 62082RSRC3 62082RSLC3 6208LFSC3 6208EEC3 6208DUC3 6208LLUC3 EL402RSC3 6208PPC3
In stock
Price Break
4+
€11,16
10+
€10,53
20+
€10,40
30+
€10,28
50+
€10,15
75+
€10,03
100+
€9,40
200+
€9,28
250+
€9,15
500+
€9,03
1000+
€8,78
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 62082RSC3 62082RSHC3 62082RS1C3 62082RSRC3 62082RSLC3 6208LFSC3 6208EEC3 6208DUC3 6208LLUC3 EL402RSC3 6208PPC3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| Dynamic load C | 32.5 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.8 |
| Reference speed | 18000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.37 kg |
| d1 | 52.6mm |
| D2 | 69.8mm |
| r1r2 | 1.1mm |
| da min | 47mm |
| Da max | 73mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 14 |
