SKU: 6208-2Z-EU

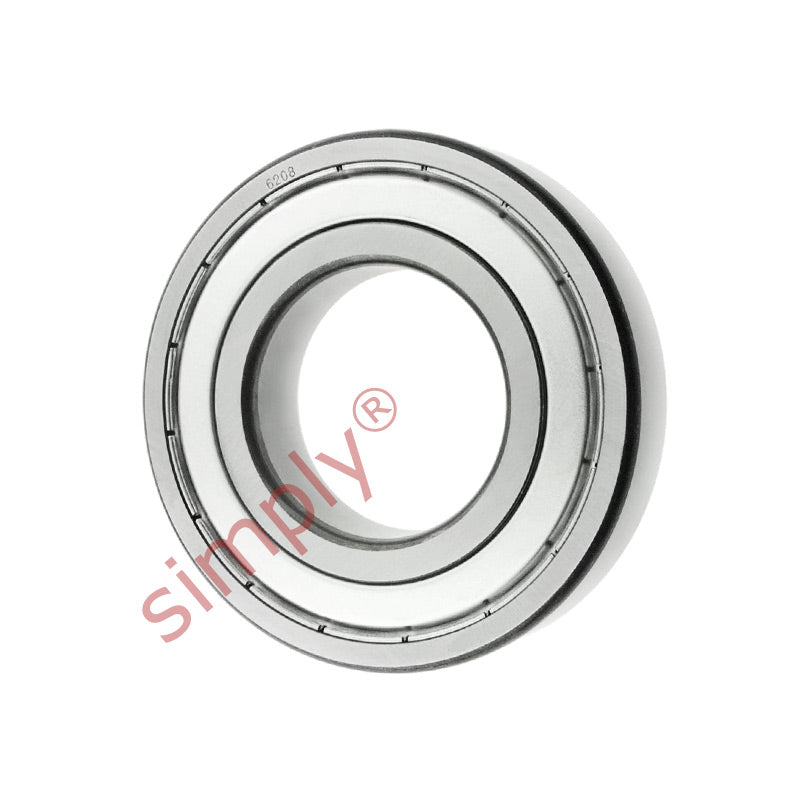

6208ZZ Budget Metal Shielded Deep Groove Ball Bearing 40x80x18mm
Equivalent to: 6208ZZE 6208ZZ 6208.2Z 6208KDD 6208DD 6208FF 62082ZR 6208ZZE 6208ZZ 62082ZR 62082RS2
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6208ZZE 6208ZZ 6208.2Z 6208KDD 6208DD 6208FF 62082ZR 6208ZZE 6208ZZ 62082ZR 62082RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| r min | 1.1mm |
| Dynamic load Cr | 29.1 kN |
| Static load Cor | 17.8 kN |
| Speed in grease | 8300 rpm |
| Speed in oil | 10000 rpm |
