SKU: 6213-2Z/VA228-SKF

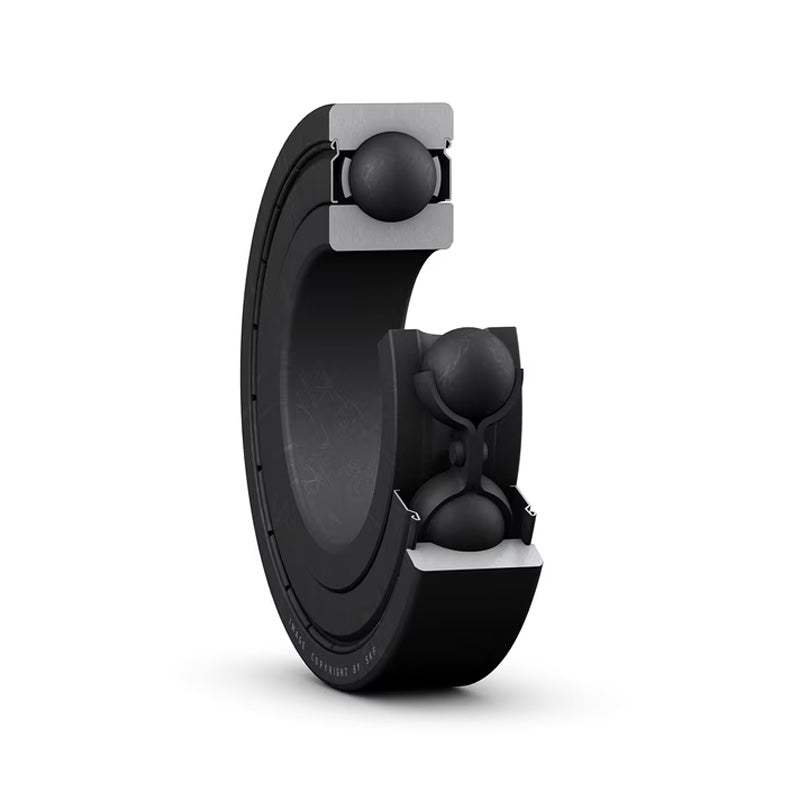

SKF 62132ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 65x120x23mm
SKF 62132ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 65x120x23mm
Regular price
€267,50
ex VAT
Regular price
Sale price
€267,50
ex VAT
In stock
Price Break
10+
€203,73
19+
€192,28
29+
€189,99
39+
€187,70
49+
€185,41
74+
€183,12
99+
€171,68
199+
€169,39
249+
€167,10
499+
€164,81
999+
€160,23
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| d1 | 83.3mm |
| D2 | 106mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 40.5 kN |
| Weight | 0.94 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
