SKU: 6215-2Z/VA228-SKF

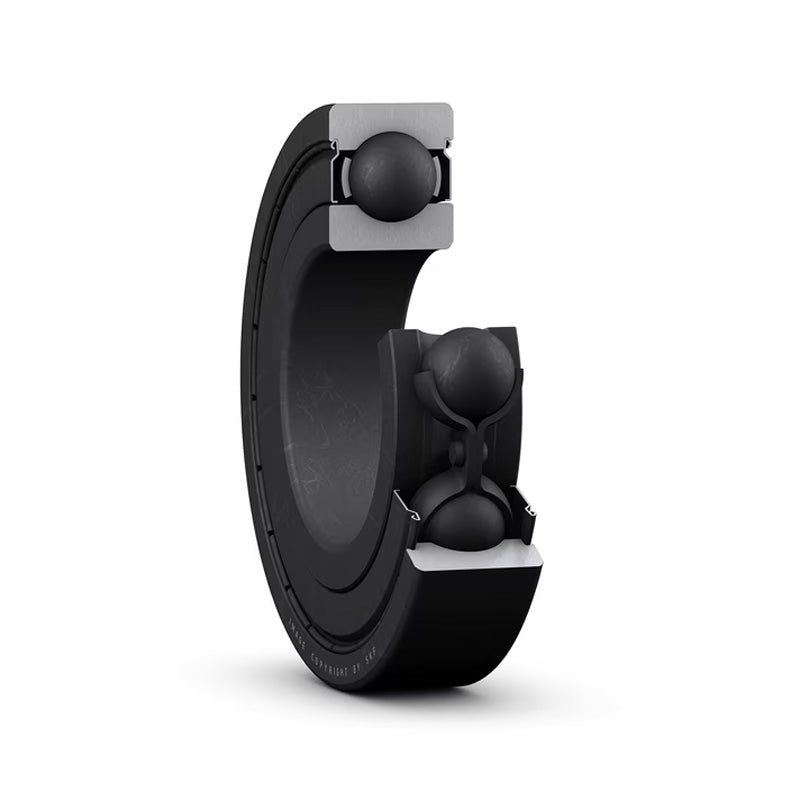

SKF 62152ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 75x130x25mm
SKF 62152ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 75x130x25mm
Regular price
€335,96
ex VAT
Regular price
Sale price
€335,96
ex VAT
In stock
Price Break
10+
€255,86
19+
€241,49
29+
€238,62
39+
€235,74
49+
€232,87
74+
€229,99
99+
€215,62
199+
€212,74
249+
€209,87
499+
€206,99
999+
€201,24
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| d1 | 92mm |
| D2 | 117mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 49 kN |
| Weight | 1.15 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
