SKU: 6216-2Z-SKF

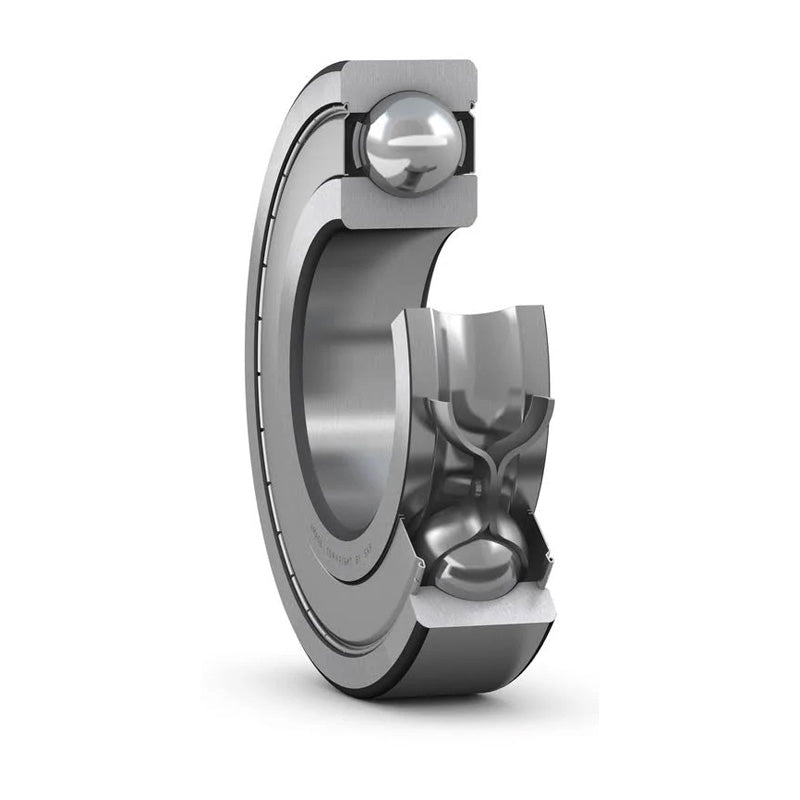

SKF 62162Z Metal Shielded Deep Groove Ball Bearing 80x140x26mm
SKF 62162Z Metal Shielded Deep Groove Ball Bearing 80x140x26mm
Regular price
€78,04
ex VAT
Regular price
Sale price
€78,04
ex VAT
Equivalent to: 6216ZZE 6216ZZ 6216.2Z 6216KDD 6216DD 6216FF 62162ZR 6216ZZ 62162Z 6216ZZ
In stock
Price Break
4+
€59,43
10+
€56,10
20+
€55,43
30+
€54,76
50+
€54,09
75+
€53,42
100+
€50,09
200+
€49,42
250+
€48,75
500+
€48,08
1000+
€46,75
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6216ZZE 6216ZZ 6216.2Z 6216KDD 6216DD 6216FF 62162ZR 6216ZZ 62162Z 6216ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 72.8 kN |
| Static load Co | 55 kN |
| Fatigue load limit Pu | 2.2 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 4800 rpm |
| Weight | 1.4 kg |
| d1 | 101mm |
| d2 | 127mm |
| D2 | 0mm |
| r1r2 min | 2mm |
| da min | 91mm |
| da max | 0mm |
| Da max | 129mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
