SKU: 6219/VA201-SKF

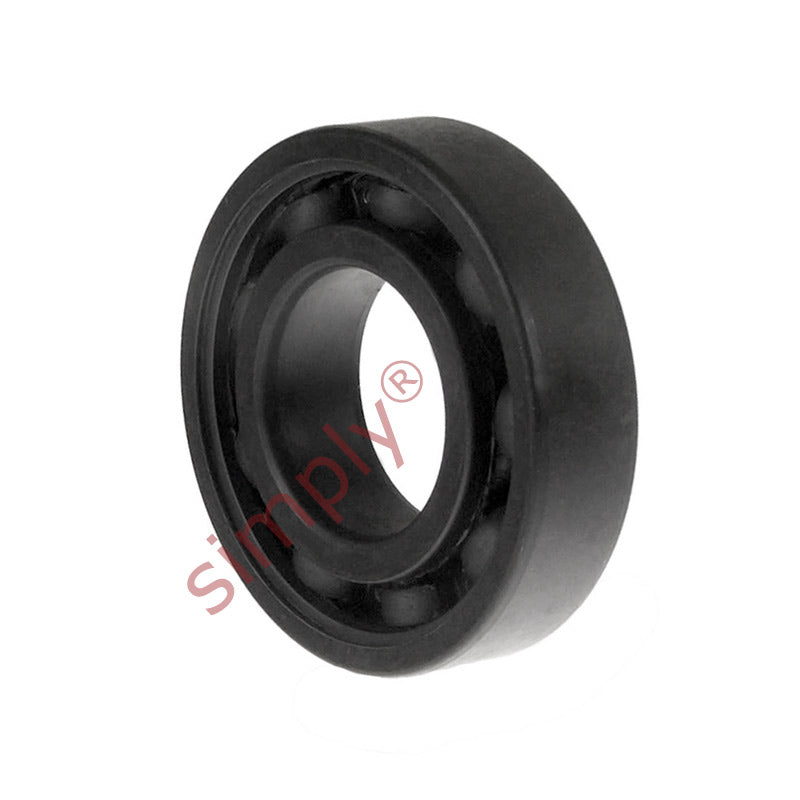

SKF 6219VA201 Single Row Deep Groove Ball Bearing High Temperature Type 95x170x32mm
SKF 6219VA201 Single Row Deep Groove Ball Bearing High Temperature Type 95x170x32mm
Regular price
€447,16
ex VAT
Regular price
Sale price
€447,16
ex VAT
In stock
Price Break
10+
€340,56
19+
€321,43
29+
€317,60
39+
€313,78
49+
€309,95
74+
€306,12
99+
€286,99
199+
€283,16
249+
€279,34
499+
€275,51
999+
€267,86
Share this product
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| d1 | 118mm |
| D2 | 152mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 81.5 kN |
| Weight | 2.6 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
