SKU: 6220-2Z/VA228-SKF

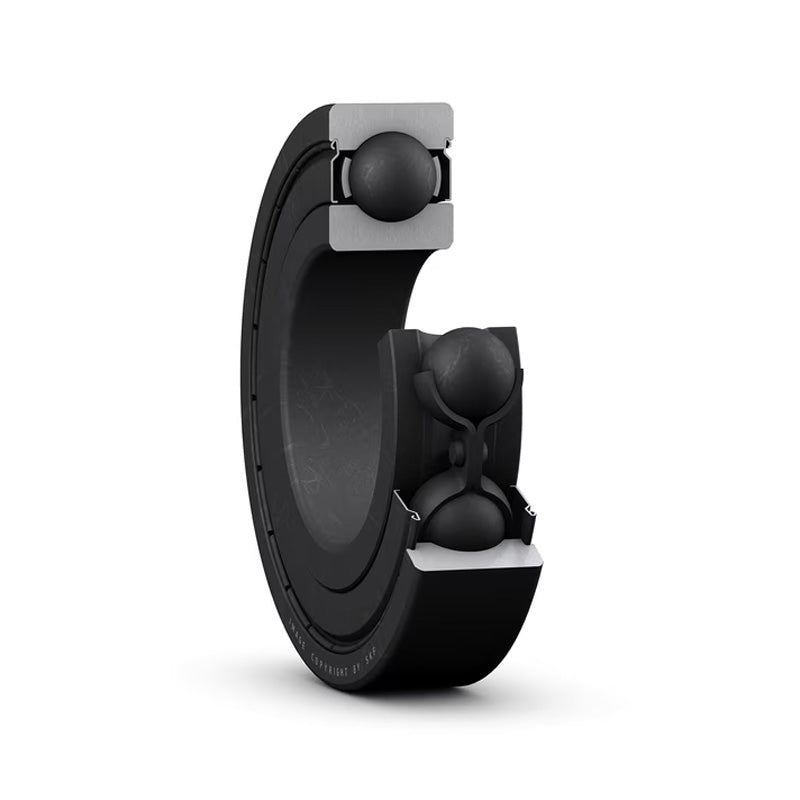

SKF 62202ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
SKF 62202ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
Regular price
€687,90
ex VAT
Regular price
Sale price
€687,90
ex VAT
In stock
Price Break
10+
€523,90
19+
€494,47
29+
€488,58
39+
€482,70
49+
€476,81
74+
€470,92
99+
€441,49
199+
€435,61
249+
€429,72
499+
€423,83
999+
€412,06
Share this product
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| d1 | 124mm |
| D2 | 160mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 93 kN |
| Weight | 3 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
