SKU: 6220/C3VL0241-SKF

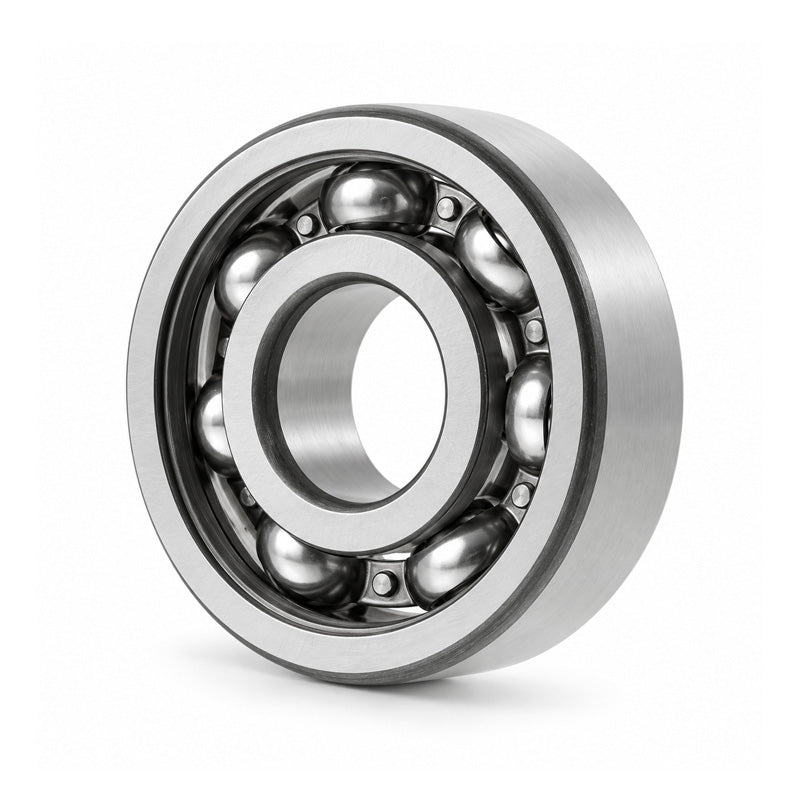

SKF 6220C3VL0241 Insocoat Deep Groove Ball Bearing 100x180x34mm
SKF 6220C3VL0241 Insocoat Deep Groove Ball Bearing 100x180x34mm
Regular price
€1.375,50
ex VAT
Regular price
Sale price
€1.375,50
ex VAT
In stock
Price Break
10+
€1.047,58
19+
€988,73
29+
€976,96
39+
€965,19
49+
€953,42
74+
€941,65
99+
€882,79
199+
€871,02
249+
€859,25
499+
€847,48
999+
€823,94
Share this product
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| Dynamic load Cr | 124 kN |
| Static load Cor | 93 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 4800 rpm |
| Weight | 3.15 kg |
| d1 | 125mm |
| D1 | 155mm |
| D2 | 160mm |
| r1r2 min | 2.1mm |
| da min | 112mm |
| Da min | 165mm |
| Da max | 168mm |
| ra max | 2mm |
| kr | 0.025 |
| fo | 14 |
