SKU: 6226/C3VL2071-SKF

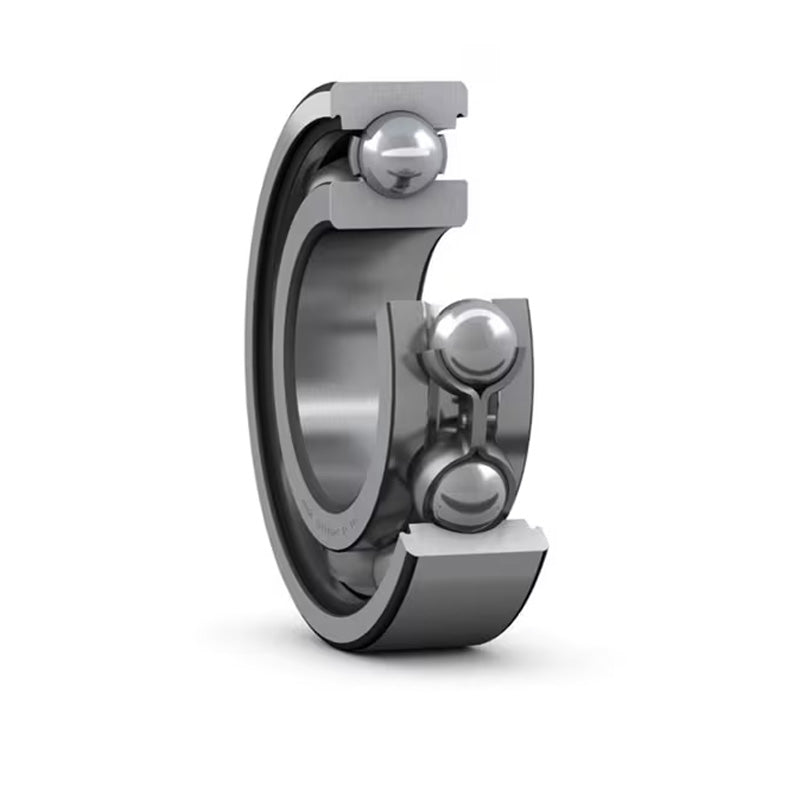

SKF 6226C3VL2071 Insocoat Deep Groove Ball Bearing 130x230x40mm

Name: SKF 6226C3VL2071 Insocoat Deep Groove Ball Bearing 130x230x40mm
Brand: SKF
SKU: 6226/C3VL2071-SKF
Price: 2003.25 EUR
Availability: InStock

€2.003,25 ex VAT

Sale Sold out

In stock

Price Break

10+ €1.525,67

19+ €1.439,96

29+ €1.422,82

39+ €1.405,68

49+ €1.388,53

74+ €1.371,39

99+ €1.285,68

199+ €1.268,54

249+ €1.251,39

499+ €1.234,25

999+ €1.199,97

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness)
Benefits: Electrically insulated

Brand / Quality:: SKF - High Quality
Inside Diameter:: 130mm
Outside Diameter:: 230mm
Width:: 40mm
Seals / Shields:: None
Clearance:: C3

Technical

d	130mm
D	230mm
B	40mm
Dynamic load Cr	156 kN
Static load Cor	132 kN
Fatigue load limit Pu	4.15 kN
Reference speed	5600 rpm
Limiting speed	3600 rpm
Weight	5.75 kg
d1	160mm
D1	199mm
D2	205mm
r1r2 min	3mm
da min	144mm
da max	154mm
Da max	216mm
ra max	2.5mm
kr	0.025
fo	15
