SKU: 6226-ZZ/C3-NACHI

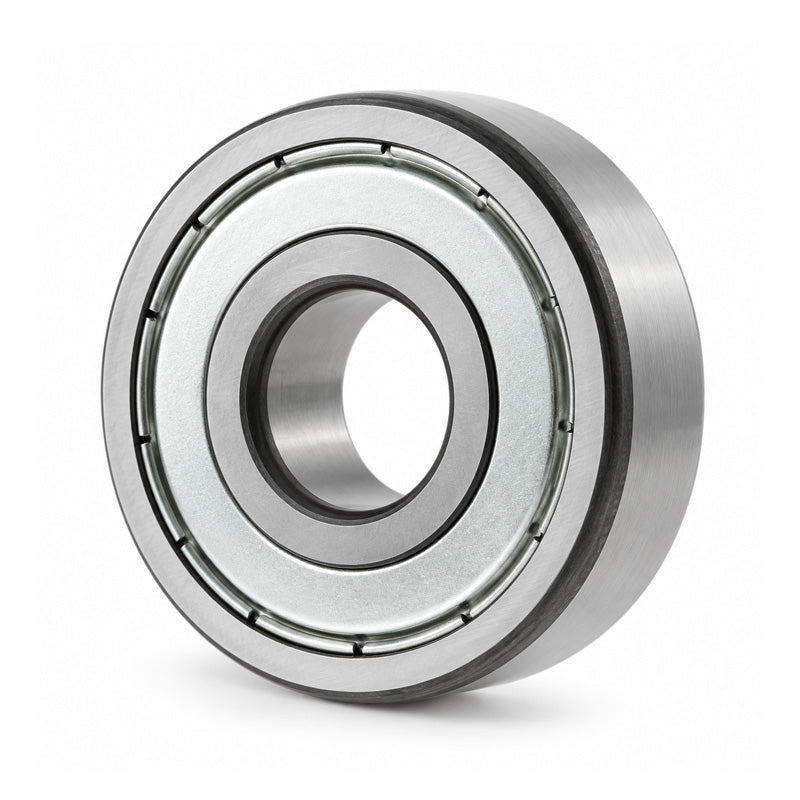

NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm
NACHI 6226ZZC3 Metal Shielded Deep Groove Ball Bearing 130x230x40mm
Regular price
€3.771,74
ex VAT
Regular price
Sale price
€3.771,74
ex VAT
Equivalent to: 6226ZZEC3 62262ZC3 6226.2ZC3 6226KDDC3 6226DDC3 62262ZRC3 6226FFC3
In stock
Price Break
10+
€3.356,85
19+
€3.168,26
29+
€3.130,54
39+
€3.092,83
49+
€3.055,11
74+
€3.017,39
99+
€2.828,81
199+
€2.791,09
249+
€2.753,37
499+
€2.715,65
999+
€2.640,22
Couldn't load pickup availability
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6226ZZEC3 62262ZC3 6226.2ZC3 6226KDDC3 6226DDC3 62262ZRC3 6226FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 130mm |
|---|---|
| Outside Diameter D | 230mm |
| Width B | 40mm |
| Min radius r | 3mm |
| Dynamic load | 167000 kN |
| Static load | 146000 kN |
| Max speed | 2700 rpm |
| da min | 144mm |
| Da max | 216mm |
| ra max | 2.5mm |
| Weight | 5.82 kg |
