SKU: 63/22C4-NTN

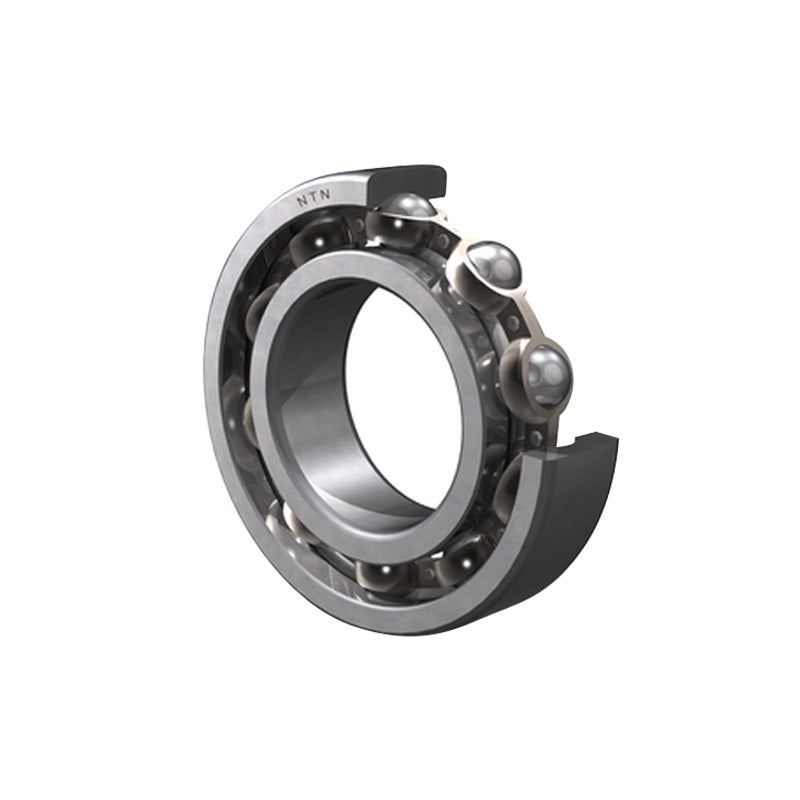

NTN 63/22C4 Open Type Deep Groove Ball Bearing 22x56x16mm
NTN 63/22C4 Open Type Deep Groove Ball Bearing 22x56x16mm
Regular price
€60,76
ex VAT
Regular price
Sale price
€60,76
ex VAT
Equivalent to: 5B22C4
In stock
Price Break
3+
€46,27
5+
€43,67
10+
€43,15
25+
€42,63
49+
€42,11
74+
€41,59
99+
€38,99
199+
€38,47
249+
€37,95
499+
€37,43
999+
€36,39
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 5B22C4
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 56mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 22mm |
| D | 56mm |
| B | 16mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 20.4 kN |
| C<sub>or</sub> | 9.25 kN |
| C<sub>u</sub> | 0.725 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 13000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 28.5mm |
| D<sub>a</sub> Max. | 49.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.176 kg |
