SKU: 6300-2Z-FAG

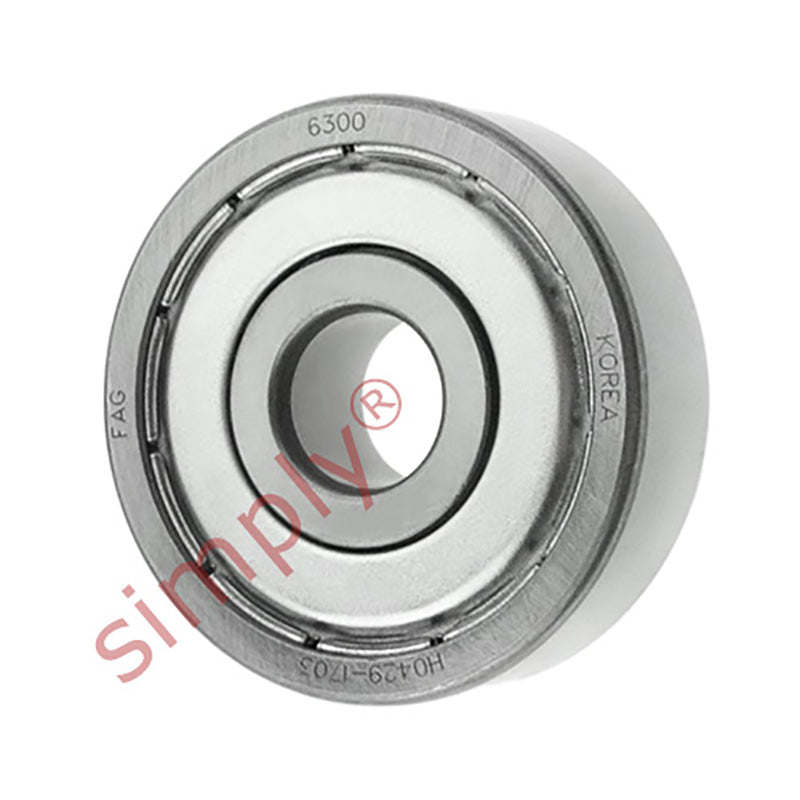

FAG 63002Z Metal Shielded Deep Groove Ball Bearing 10x35x11mm
FAG 63002Z Metal Shielded Deep Groove Ball Bearing 10x35x11mm
Regular price
€7,15
ex VAT
Regular price
Sale price
€7,15
ex VAT
Equivalent to: 63002KD 63002D 63002F 63002ZE 63002ZR
In stock
Price Break
10+
€5,45
19+
€5,14
29+
€5,08
39+
€5,02
49+
€4,96
74+
€4,90
99+
€4,59
199+
€4,53
249+
€4,47
499+
€4,41
999+
€4,28
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 63002KD 63002D 63002F 63002ZE 63002ZR
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 10mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 8.52 kN |
| Static load Co | 3.4 kN |
| Fatigue load limit Pu | 0.143 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Mass | 0.053 kg |
| d2 | 15.7mm |
| D2 | 28.7mm |
| r1r2 min | 0.6mm |
| da min | 14.2 |
