SKU: 6302-2Z-KOY

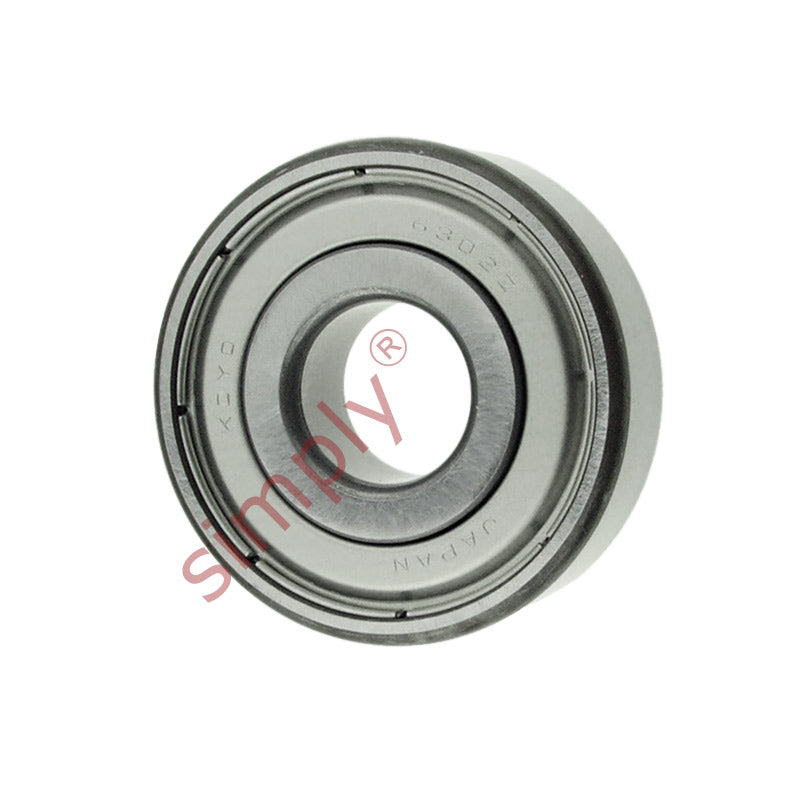

KOYO 63022Z Metal Shielded Deep Groove Ball Bearing 15x42x13mm
KOYO 63022Z Metal Shielded Deep Groove Ball Bearing 15x42x13mm
Regular price
€7,29
ex VAT
Regular price
Sale price
€7,29
ex VAT
Equivalent to: 6302ZZE 63022Z 6302.2Z 6302KDD 6302DD 63022ZR 6302FF 6302Z
In stock
Price Break
5+
€5,55
9+
€5,24
19+
€5,18
29+
€5,12
49+
€5,06
74+
€4,99
99+
€4,68
199+
€4,62
249+
€4,56
499+
€4,49
999+
€4,37
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6302ZZE 63022Z 6302.2Z 6302KDD 6302DD 63022ZR 6302FF 6302Z
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 11.4 kN |
| Static load | 5.45 kN |
| Max speed in oil | 20000 rpm |
| Max speed in grease | 12000 rpm |
