SKU: 6303-2Z/C3-KOY

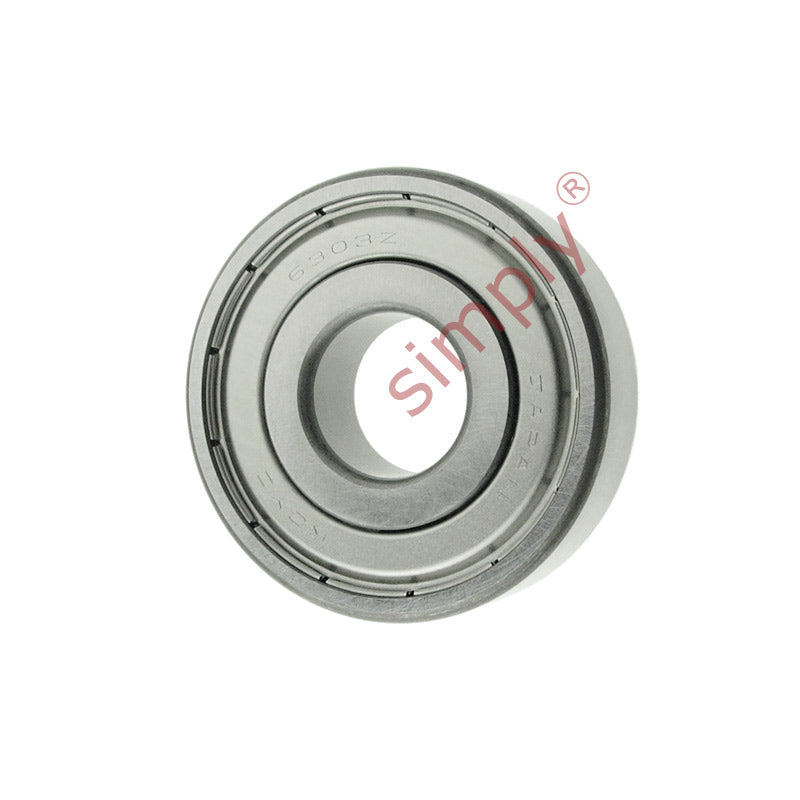

KOYO 63032ZC3 Metal Shielded Deep Groove Ball Bearing 17x47x14mm
KOYO 63032ZC3 Metal Shielded Deep Groove Ball Bearing 17x47x14mm
Regular price
€8,29
ex VAT
Regular price
Sale price
€8,29
ex VAT
Equivalent to: 6303ZZEC3 6303ZZC3 6303.2ZC3 6303KDDC3 6303DDC3 63032ZRC3 6303FFC3
In stock
Price Break
5+
€6,31
9+
€5,96
19+
€5,88
29+
€5,81
49+
€5,74
74+
€5,67
99+
€5,32
199+
€5,25
249+
€5,18
499+
€5,10
999+
€4,96
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6303ZZEC3 6303ZZC3 6303.2ZC3 6303KDDC3 6303DDC3 63032ZRC3 6303FFC3
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 14mm |
| Min radius r | 1mm |
| Dynamic load | 13.6 kN |
| Static load | 6.65 kN |
| Max speed in oil | 18000 rpm |
| Max speed in grease | 10000 rpm |
