SKU: 6305-2Z/C4-SKF

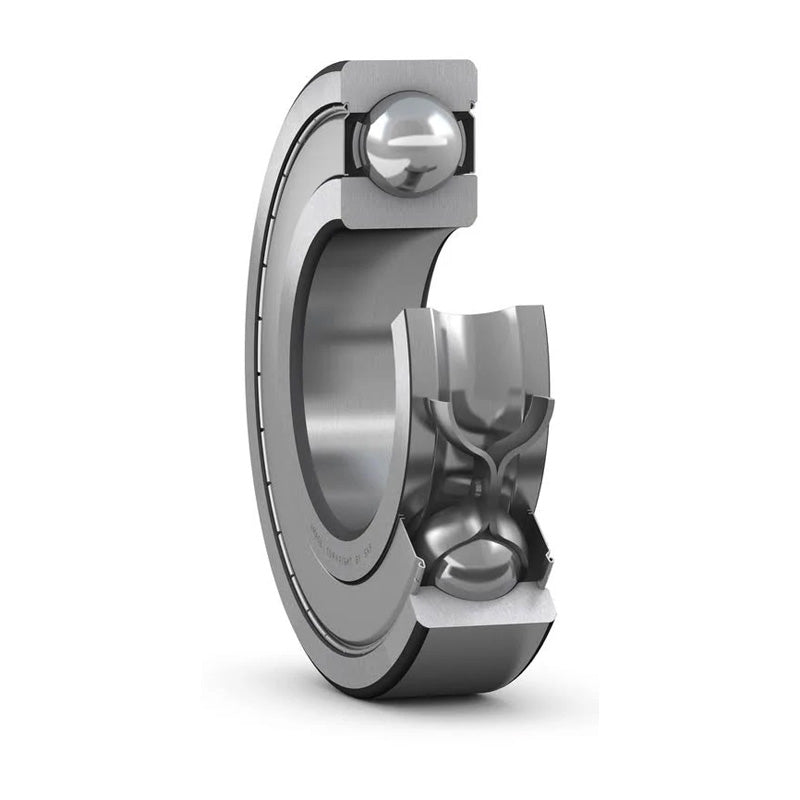

SKF 63052ZC4 Metal Shielded Deep Groove Ball Bearing 25x62x17mm
SKF 63052ZC4 Metal Shielded Deep Groove Ball Bearing 25x62x17mm
Regular price
€10,23
ex VAT
Regular price
Sale price
€10,23
ex VAT
Equivalent to: 6305ZZEC4 6305ZZC4 6305.2ZC4 6305KDDC4 6305DDC4 63052ZRC4 6305FFC4
In stock
Price Break
4+
€7,79
10+
€7,35
20+
€7,26
30+
€7,18
50+
€7,09
75+
€7,00
100+
€6,56
200+
€6,48
250+
€6,39
500+
€6,30
1000+
€6,13
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6305ZZEC4 6305ZZC4 6305.2ZC4 6305KDDC4 6305DDC4 63052ZRC4 6305FFC4
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C4
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 23.4 kN |
| Static load Co | 11.6 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 13000 rpm |
| Weight | 0.23 kg |
| d1 | 36.6mm |
| D2 | 52.7mm |
| r1r2 min | 1.1mm |
| da min | 32mm |
| Da max | 55mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 12 |
