SKU: 6305ETN9/C3-SKF

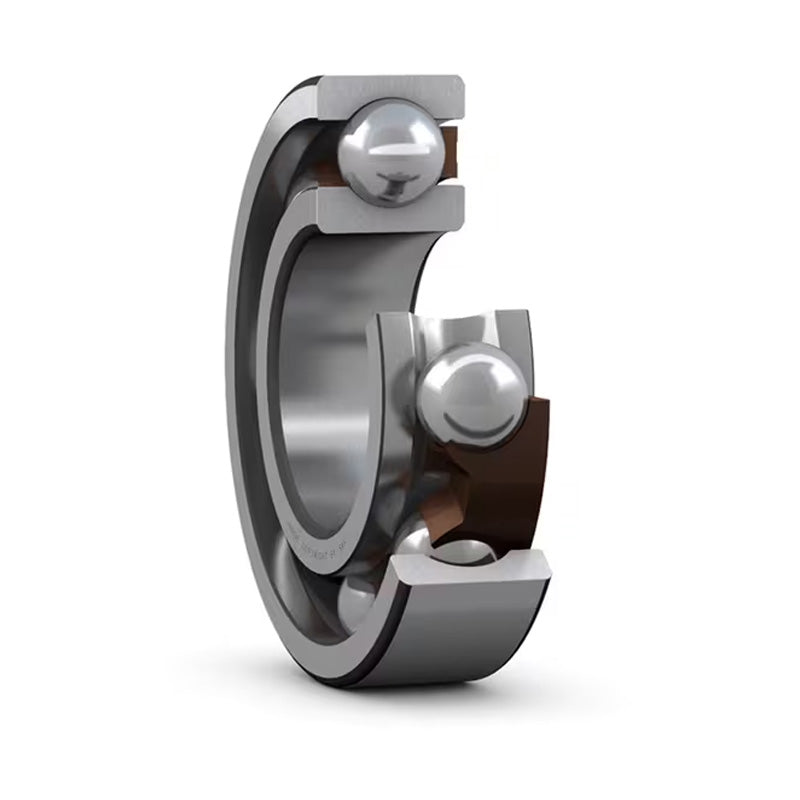

SKF 6305ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 25x62x17mm
SKF 6305ETN9C3 Open Deep Groove Ball Bearing with Fibre Cage 25x62x17mm
Regular price
€41,22
ex VAT
Regular price
Sale price
€41,22
ex VAT
In stock
Price Break
4+
€31,39
10+
€29,63
20+
€29,27
30+
€28,92
50+
€28,57
75+
€28,22
100+
€26,45
200+
€26,10
250+
€25,75
500+
€25,39
1000+
€24,69
Share this product
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load | 26 kN |
| Static load | 13.4 kN |
| Fatigue load limit Pu | 0.57 kN |
| Reference speed | 24000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.21 kg |
| d1 | 36.4mm |
| D1 | 51.7mm |
| D2 | n/amm |
| r1r2 min | 1.1mm |
| da min | 32mm |
| Da max | 55mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 12 |
