SKU: 6306/VA201-SKF

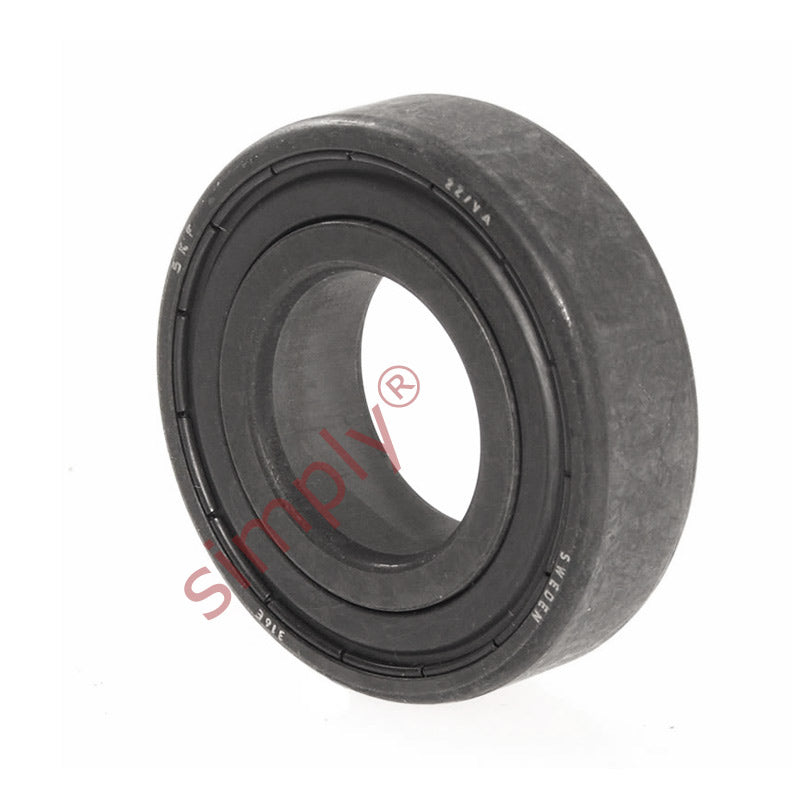

SKF 6306VA201 Single Row Deep Groove Ball Bearing High Temperature Type 30x72x19mm
SKF 6306VA201 Single Row Deep Groove Ball Bearing High Temperature Type 30x72x19mm
Regular price
€59,48
ex VAT
Regular price
Sale price
€59,48
ex VAT
In stock
Price Break
10+
€52,94
19+
€49,96
29+
€49,37
39+
€48,77
49+
€48,18
74+
€47,58
99+
€44,61
199+
€44,02
249+
€43,42
499+
€42,83
999+
€41,64
Couldn't load pickup availability
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| d1 | 44.6mm |
| D2 | 61.9mm |
| r1r2 | 1.1mm |
| Basic load rating Co | 16 kN |
| Weight | 0.35 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
