SKU: 6306-ZZE-NACHI

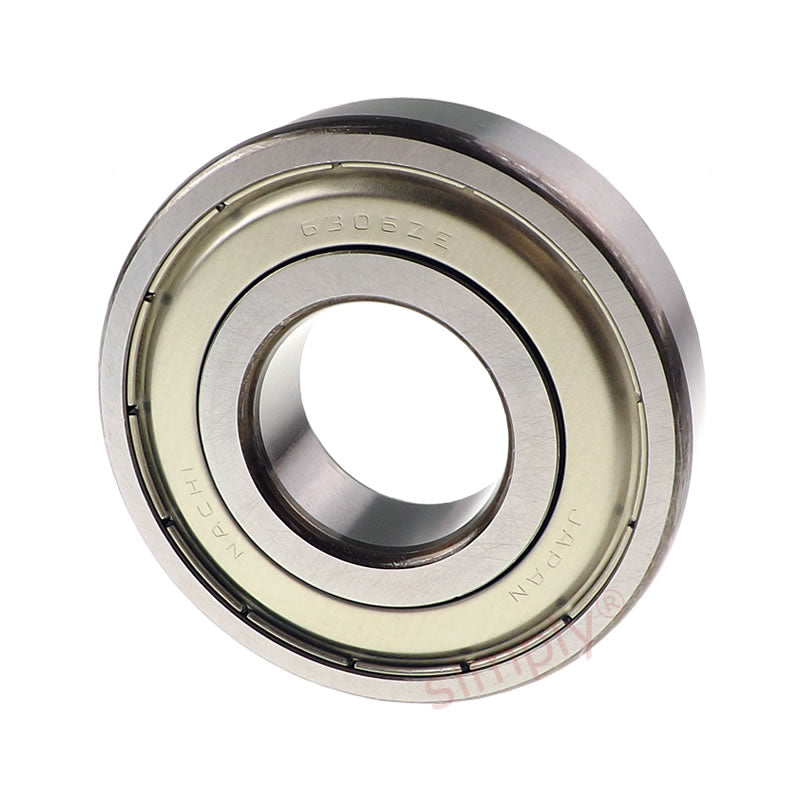

NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
NACHI 6306ZZE Metal Shielded Deep Groove Ball Bearing 30x72x19mm
Regular price
€10,14
ex VAT
Regular price
Sale price
€10,14
ex VAT
Equivalent to: 6306ZZ 63062Z 6306.2Z 6306KDD 6306DD 63062ZR 6306FF
In stock
Price Break
5+
€7,73
9+
€7,29
19+
€7,20
29+
€7,12
49+
€7,03
74+
€6,94
99+
€6,51
199+
€6,42
249+
€6,34
499+
€6,25
999+
€6,08
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6306ZZ 63062Z 6306.2Z 6306KDD 6306DD 63062ZR 6306FF
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 72mm |
| Width B | 19mm |
| Min radius r | 1.1mm |
| Dynamic load | 26700 kN |
| Static load | 15000 kN |
| Max speed | 10000 rpm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
| Weight | 0.346 kg |
