SKU: 6307/VA201-SKF

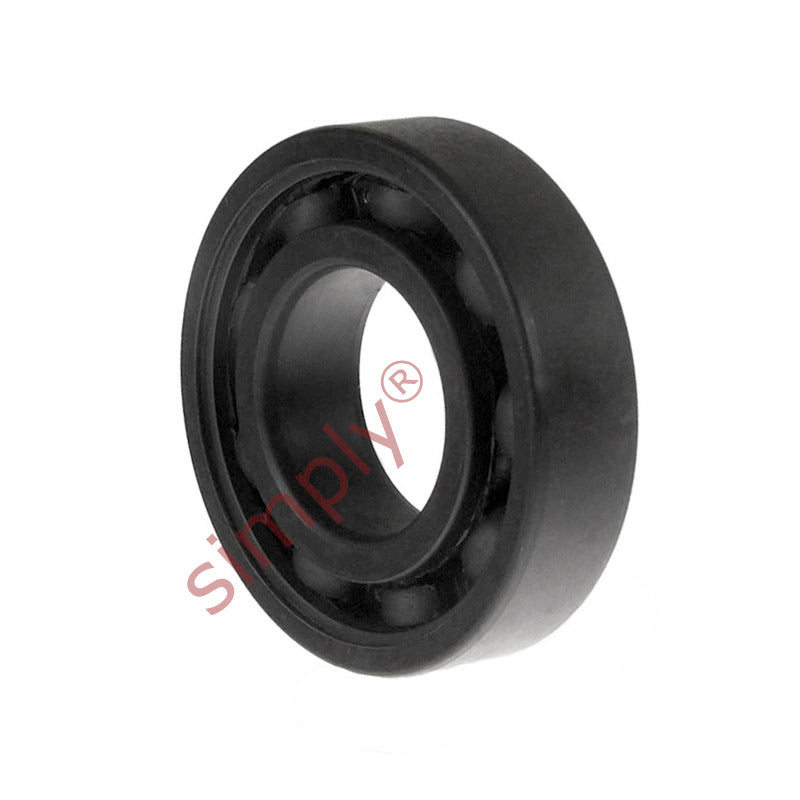

SKF 6307VA201 Single Row Deep Groove Ball Bearing High Temperature Type 35x80x21mm
SKF 6307VA201 Single Row Deep Groove Ball Bearing High Temperature Type 35x80x21mm
Regular price
€71,32
ex VAT
Regular price
Sale price
€71,32
ex VAT
In stock
Price Break
10+
€54,32
19+
€51,27
29+
€50,66
39+
€50,05
49+
€49,43
74+
€48,82
99+
€45,77
199+
€45,16
249+
€44,55
499+
€43,94
999+
€42,72
Share this product
Description
Description
|
SKF VA201 Series High Temperature Bearings: Supplied as an open type bearing are designed for high temperatures up to + 250 degrees Celsius and down to - 40 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| d1 | 49.5mm |
| D2 | 69.2mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 19 kN |
| Weight | 0.46 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
