SKU: 6308-2Z/C3-EU

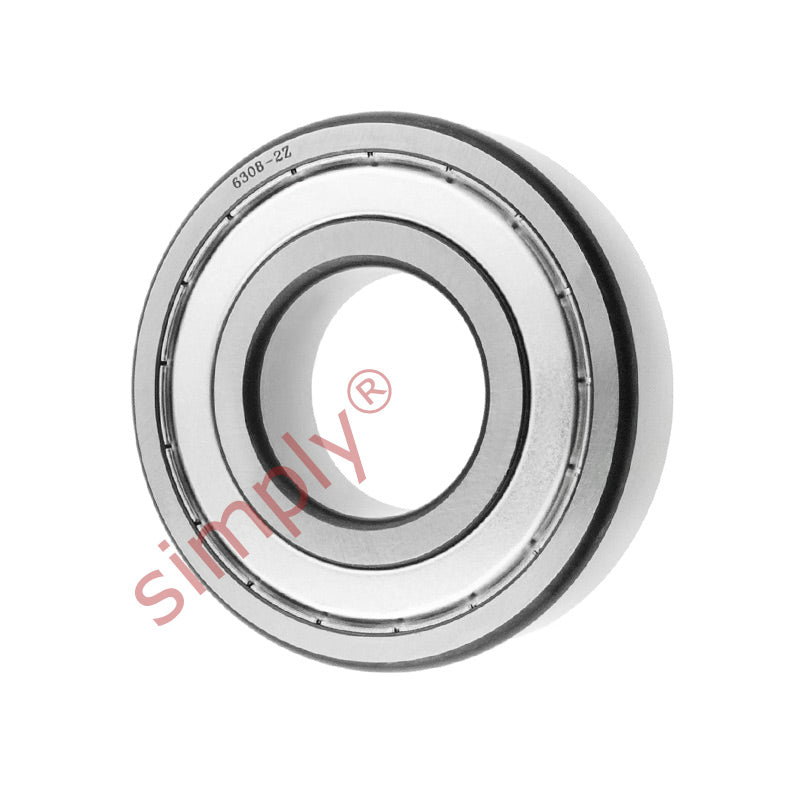

6308ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308.2ZC3 6308KDDC3 6308DDC3 6308FFC3 63082ZRC3 63082ZRC3 6308ZZEC3 6308ZZC3
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6308.2ZC3 6308KDDC3 6308DDC3 6308FFC3 63082ZRC3 63082ZRC3 6308ZZEC3 6308ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| r min | 1.5mm |
| Dynamic load Cr | 40.7 kN |
| Static load Cor | 24 kN |
| Speed in grease | 7700 rpm |
| Speed in oil | 9200 rpm |
