SKU: 6308-2Z/C3-FAG

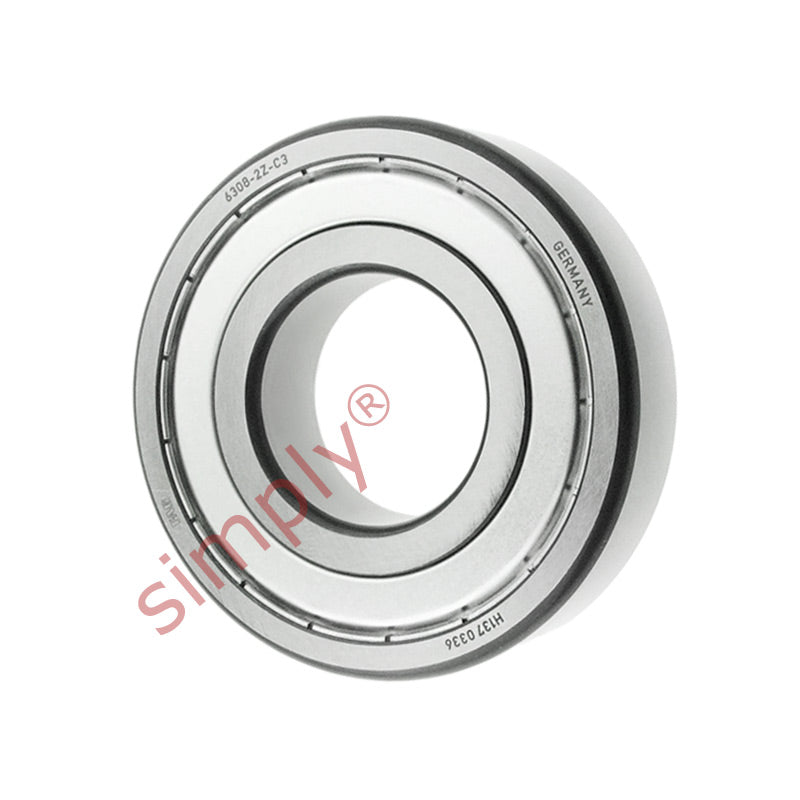

FAG 63082ZC3 Metal Shielded Deep Groove Ball Bearing 40x90x23mm
FAG 63082ZC3 Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Regular price
€19,89
ex VAT
Regular price
Sale price
€19,89
ex VAT
Equivalent to: 6308ZZEC3 6308ZZC3 6308.2ZC3 6308KDDC3 6308DDC3 63082ZRC3 6308FFC3
In stock
Price Break
10+
€15,15
19+
€14,30
29+
€14,13
39+
€13,96
49+
€13,79
74+
€13,62
99+
€12,77
199+
€12,59
249+
€12,42
499+
€12,25
999+
€11,91
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6308ZZEC3 6308ZZC3 6308.2ZC3 6308KDDC3 6308DDC3 63082ZRC3 6308FFC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 42.3 kN |
| Static load Co | 24 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 8500 rpm |
| Mass | 0.63 kg |
| d1 | 56.1mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 49 |
