SKU: 6308-HT-330

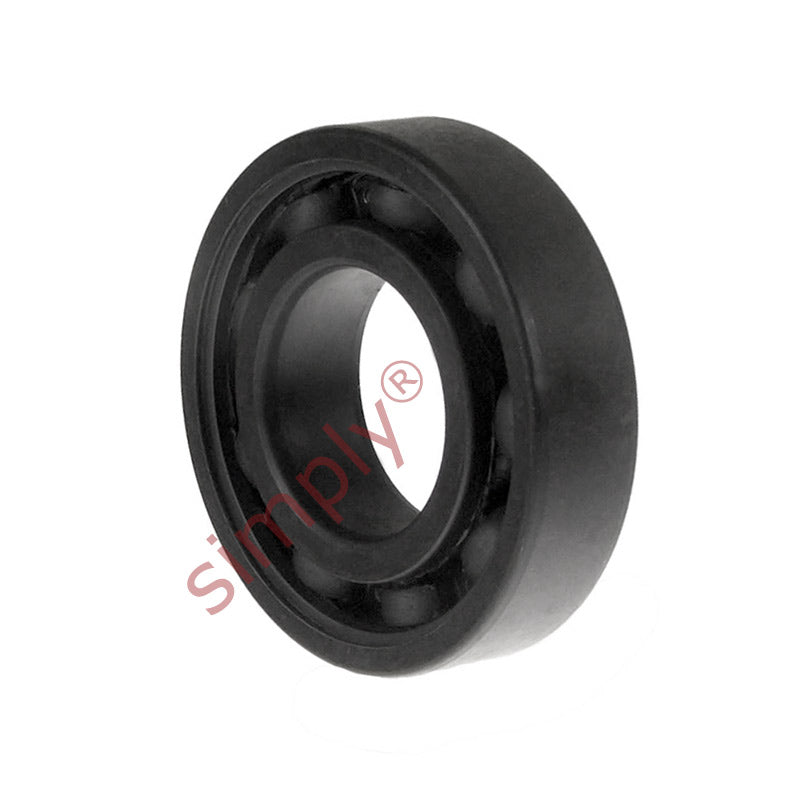

6308HT330 High Temp 330C Open Deep Groove Ball Bearing 40x90x23mm Max 80rpm
6308HT330 High Temp 330C Open Deep Groove Ball Bearing 40x90x23mm Max 80rpm
Regular price
€18,17
ex VAT
Regular price
Sale price
€18,17
ex VAT
Equivalent to: 6308VA201 6308VA208 6308VA228
In stock
Price Break
10+
€16,17
19+
€15,26
29+
€15,08
39+
€14,90
49+
€14,72
74+
€14,54
99+
€13,63
199+
€13,45
249+
€13,26
499+
€13,08
999+
€12,72
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6308VA201 6308VA208 6308VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 40mm |
|---|---|
| Outside diameter D | 90mm |
| Width W | 23mm |
| Static load max | 14.45 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 80 rpm |
| Weight | 620 g |
