SKU: 6314/C3VL0241-SKF

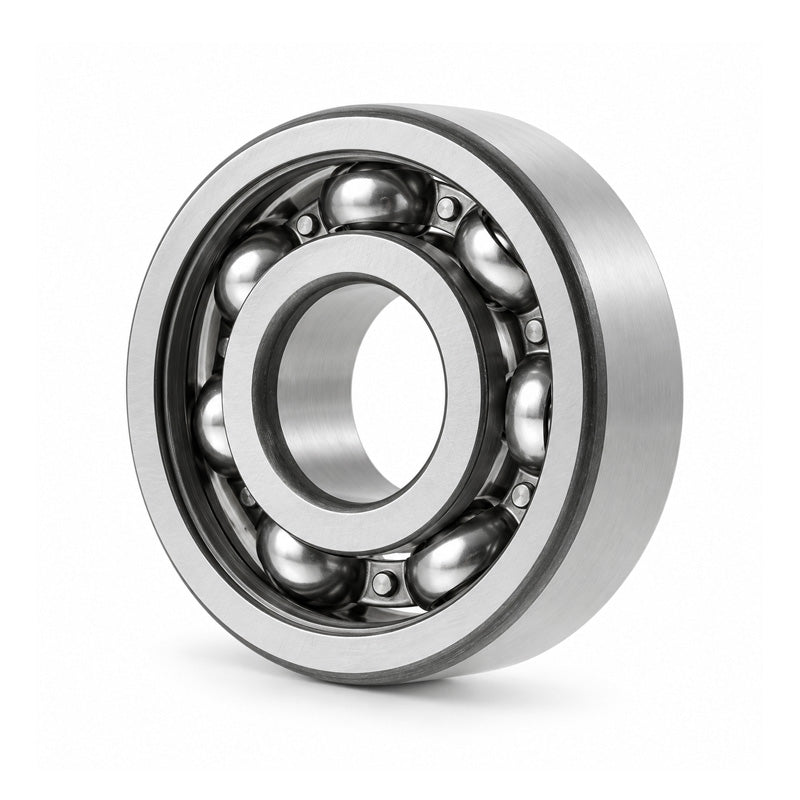

SKF 6314C3VL0241 Insocoat Deep Groove Ball Bearing 70x150x35mm
SKF 6314C3VL0241 Insocoat Deep Groove Ball Bearing 70x150x35mm
Regular price
€944,78
ex VAT
Regular price
Sale price
€944,78
ex VAT
In stock
Price Break
10+
€840,85
19+
€793,62
29+
€784,17
39+
€774,72
49+
€765,27
74+
€755,82
99+
€708,59
199+
€699,14
249+
€689,69
499+
€680,24
999+
€661,35
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load Cr | 104 kN |
| Static load Cor | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6300 rpm |
| Weight | 2.5 kg |
| d1 | 95mm |
| D1 | 126mm |
| D2 | 132mm |
| r1r2 min | 2.1mm |
| da min | 82mm |
| Da min | 136mm |
| Da max | 138mm |
| ra max | 2mm |
| kr | 0.03 |
| fo | 13 |
